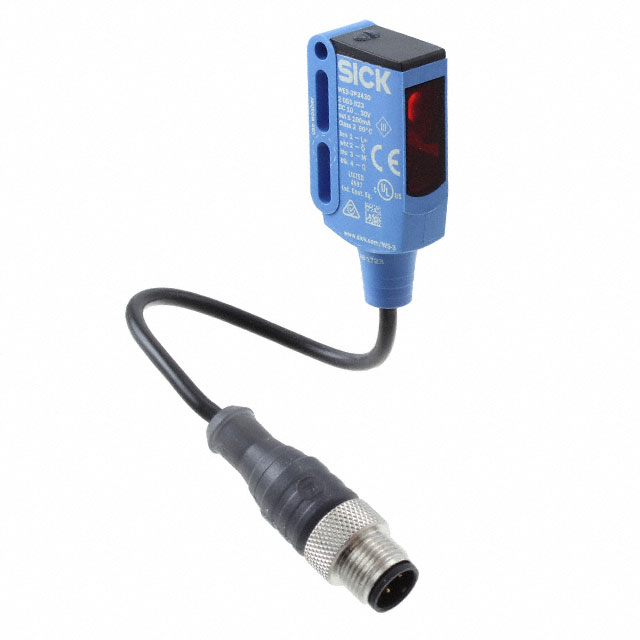

Specification	1049078

Connection Method	Cable with Connector, M12, 4POS, 3POS
Ingress Protection	IP69K, IP66, IP67
Light Source	Red LED
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Light-ON - Selectable, Dark-ON, Selectable, Light-ON, PNP, PNP - Dark-ON
Response Time	500 µs
Sensing Distance Maximum	275.591 "
Sensing Distance Minimum	0 cm
Sensing Method	Through-Beam
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

WSE9 Series

Part	Ingress Protection	Sensing Distance Minimum	Sensing Distance Maximum	Operating Temperature (Max)	Operating Temperature (Min)	Response Time	Light Source	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Sensing Method	Output Configuration	Connection Method	Sensing Distance	Light Source Wavelength (Red)	Cable Length
SICK, Inc. 1049078	IP66 IP67 IP69K	0 cm	275.591 "	60 °C	-40 °C	500 µs	Red LED	10 VDC	30 VDC	Through-Beam	Dark-ON Light-ON Light-ON - Selectable PNP PNP - Dark-ON Selectable	3POS 4POS Cable with Connector M12
SICK, Inc. 1049080	IP66 IP67 IP69K			60 °C	-40 °C	500 µs	Red	10 VDC	30 VDC	Through-Beam	NPN	Connector M12	275.591 "	650 nm
SICK, Inc. WSE9-3N1130	IP66			60 °C	-40 °C	500 µs	Red	10 VDC	30 VDC	Through-Beam	NPN	Cable	393.701 "	650 nm	78.74 in
