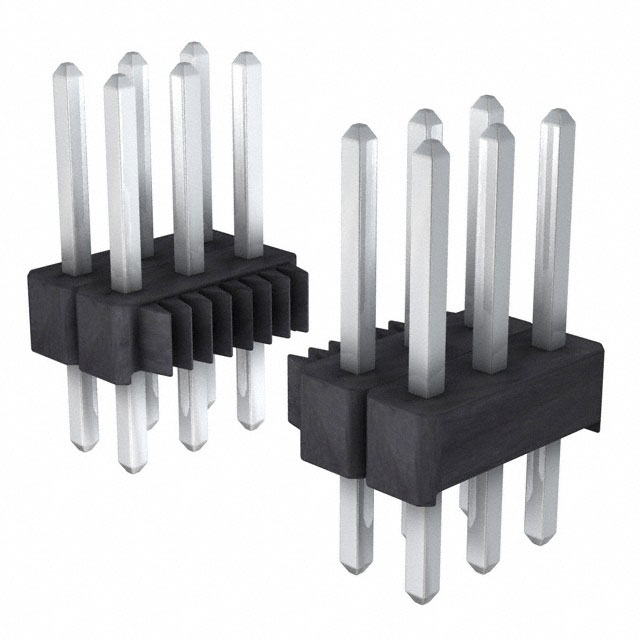

894-80-102-10-002101

Active

PRECI-DIP SA

CONN HEADER VERT 102POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

894-80-102-10-002101

Active

PRECI-DIP SA

CONN HEADER VERT 102POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	894-80-102-10-002101

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7 mm
Contact Length - Mating	0.276 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	102
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	12.54 mm
Overall Contact Length	0.494 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

894-80 Series

...

Part	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Material	Shrouding	Fastening Type	Number of Rows	Contact Shape	Termination	Mounting Type	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Insulation Material	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Color	Number of Positions	Current Rating (Amps)	Connector Type	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height
PRECI-DIP SA 894-80-084-20-002101	All	-55 °C	125 °C	150 VDC	Brass	Unshrouded	Push-Pull	3	Square	Solder	Through Hole Right Angle	7 mm	0.276 in	0.3 in	7.62 mm	2.54 mm	0.1 in	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Tin	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Black	84	3 A	Header
PRECI-DIP SA 894-80-105-20-002101	All	-55 °C	125 °C	150 VDC	Brass	Unshrouded	Push-Pull	3	Square	Solder	Through Hole Right Angle	7 mm	0.276 in	0.3 in	7.62 mm	2.54 mm	0.1 in	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Tin	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Black	105	3 A	Header
PRECI-DIP SA 894-80-099-10-002101	All	-55 °C	125 °C	150 VDC	Brass	Unshrouded	Push-Pull	3	Square	Solder	Through Hole	7 mm	0.276 in			2.54 mm	0.1 in	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Tin	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Black	99	3 A	Header	12.54 mm	0.494 in	0.1 in	2.54 mm
PRECI-DIP SA 894-80-111-20-002101	All	-55 °C	125 °C	150 VDC	Brass	Unshrouded	Push-Pull	3	Square	Solder	Through Hole Right Angle	7 mm	0.276 in	0.3 in	7.62 mm	2.54 mm	0.1 in	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Tin	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Black	111	3 A	Header
PRECI-DIP SA 894-80-021-10-004101	All	-55 °C	125 °C	150 VDC	Brass	Unshrouded	Push-Pull	3	Square	Solder	Through Hole	14.91 mm	0.587 in			2.54 mm	0.1 in	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Tin	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Black	21	3 A	Header	20.44 mm	0.805 "	0.1 in	2.54 mm
PRECI-DIP SA 894-80-030-10-001101	All	-55 °C	125 °C	150 VDC	Brass	Unshrouded	Push-Pull	3	Square	Solder	Through Hole	6 mm	0.236 in			2.54 mm	0.1 in	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Tin	0.122 "	3.1 mm	0.1 in	2.54 mm	Male Pin	Black	30	3 A	Header	11.64 mm	0.458 "	0.1 in	2.54 mm
PRECI-DIP SA 894-80-108-10-004101	All	-55 °C	125 °C	150 VDC	Brass	Unshrouded	Push-Pull	3	Square	Solder	Through Hole	14.91 mm	0.587 in			2.54 mm	0.1 in	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Tin	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Black	108	3 A	Header	20.44 mm	0.805 "	0.1 in	2.54 mm
PRECI-DIP SA 894-80-087-10-001101	All	-55 °C	125 °C	150 VDC	Brass	Unshrouded	Push-Pull	3	Square	Solder	Through Hole	6 mm	0.236 in			2.54 mm	0.1 in	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Tin	0.122 "	3.1 mm	0.1 in	2.54 mm	Male Pin	Black	87	3 A	Header	11.64 mm	0.458 "	0.1 in	2.54 mm
PRECI-DIP SA 894-80-102-10-002101	All	-55 °C	125 °C	150 VDC	Brass	Unshrouded	Push-Pull	3	Square	Solder	Through Hole	7 mm	0.276 in			2.54 mm	0.1 in	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Tin	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Black	102	3 A	Header	12.54 mm	0.494 in	0.1 in	2.54 mm
PRECI-DIP SA 894-80-045-10-003101	All	-55 °C	125 °C	150 VDC	Brass	Unshrouded	Push-Pull	3	Square	Solder	Through Hole	8.51 mm	0.335 in			2.54 mm	0.1 in	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Tin	0.118 in	3 mm	0.1 in	2.54 mm	Male Pin	Black	45	3 A	Header	14.04 mm	0.553 in	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	130	$ 5.97

Description

General part information

894-80 Series

Connector Header Through Hole 102 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
