Description

General part information

C1808C Series

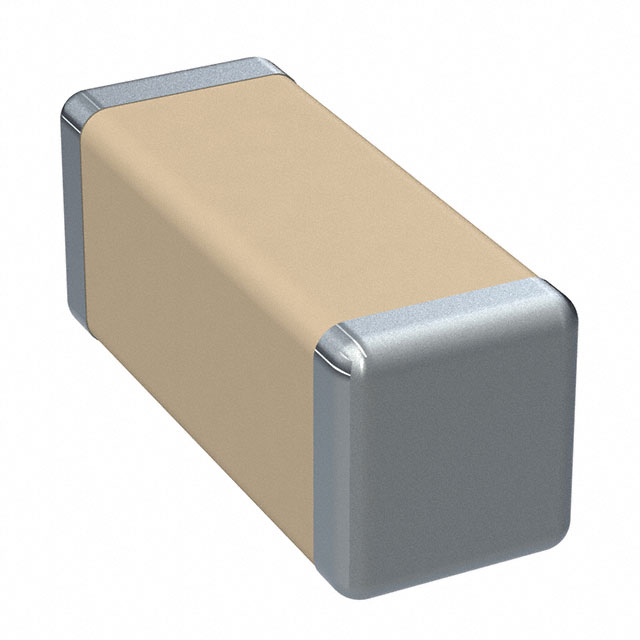

47 pF ±10% 3000V (3kV) Ceramic Capacitor C0G, NP0 1808 (4520 Metric)

Technical Specifications

Parameters and characteristics for this part

Specification	C1808C470KHGAC7800

Applications	General Purpose
Capacitance	47 pF
Features	High Voltage, Low ESL
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	1808 (4520 Metric)
Size / Dimension Length	0.185 in
Size / Dimension Width	0.079 in
Temperature Coefficient	NP0, C0G
Thickness (Max)	0.069 in
Tolerance	10 %
Voltage - Rated	3000 V

C1808C Series

...

Part	Temperature Coefficient	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Features	Mounting Type	Size / Dimension Length	Size / Dimension Width	Voltage - Rated	Tolerance	Package / Case	Capacitance	Thickness (Max)	Ratings
KEMET C1808C272MGRAC7800	X7R	125 °C	-55 °C	General Purpose	High Voltage Low ESL	MLCC Surface Mount	0.185 in	0.079 in	2000 VAC	20 %	1808 (4520 Metric)	2700 pF	0.085 in
KEMET C1808C681J5GAL7800	C0G NP0	125 °C	-55 °C	General Purpose	Low ESL	MLCC Surface Mount	0.185 in	0.079 in	50 V	5 %	1808 (4520 Metric)	680 pF	0.045 in
KEMET C1808C391J5GAC7800	C0G NP0	125 °C	-55 °C	General Purpose	Low ESL	MLCC Surface Mount	0.185 in	0.079 in	50 V	5 %	1808 (4520 Metric)	390 pF	0.045 in
KEMET C1808C223K1RAC7800	X7R	125 °C	-55 °C	Bypass Decoupling		MLCC Surface Mount	0.185 in	0.079 in	100 VAC/DC	10 %	1808 (4520 Metric)	0.022 µF	0.039 in
KEMET C1808C471J5GAL7800	C0G NP0	125 °C	-55 °C	General Purpose	Low ESL	MLCC Surface Mount	0.185 in	0.079 in	50 V	5 %	1808 (4520 Metric)	470 pF	0.045 in
KEMET C1808C361FGGACAUTO	C0G NP0	125 °C	-55 °C	Automotive	High Voltage Low ESL	MLCC Surface Mount	0.185 in	0.079 in	2000 VAC	1 %	1808 (4520 Metric)	360 pF	0.061 in	AEC-Q200
KEMET C1808C221GZGAC7800	C0G NP0	125 °C	-55 °C	General Purpose	High Voltage Low ESL	MLCC Surface Mount	0.185 in	0.079 in	2.5 kV	2 %	1808 (4520 Metric)	220 pF	0.085 in
KEMET C1808C201FZGAC7800	C0G NP0	125 °C	-55 °C	General Purpose	High Voltage Low ESL	MLCC Surface Mount	0.185 in	0.079 in	2.5 kV	1 %	1808 (4520 Metric)	200 pF	0.085 in
KEMET C1808C470KHGAC7800	C0G NP0	125 °C	-55 °C	General Purpose	High Voltage Low ESL	MLCC Surface Mount	0.185 in	0.079 in	3000 V	10 %	1808 (4520 Metric)	47 pF	0.069 in
KEMET C1808C223M5RAC7800	X7R	125 °C	-55 °C	Bypass Decoupling		MLCC Surface Mount	0.185 in	0.079 in	50 V	20 %	1808 (4520 Metric)	0.022 µF	0.039 in
