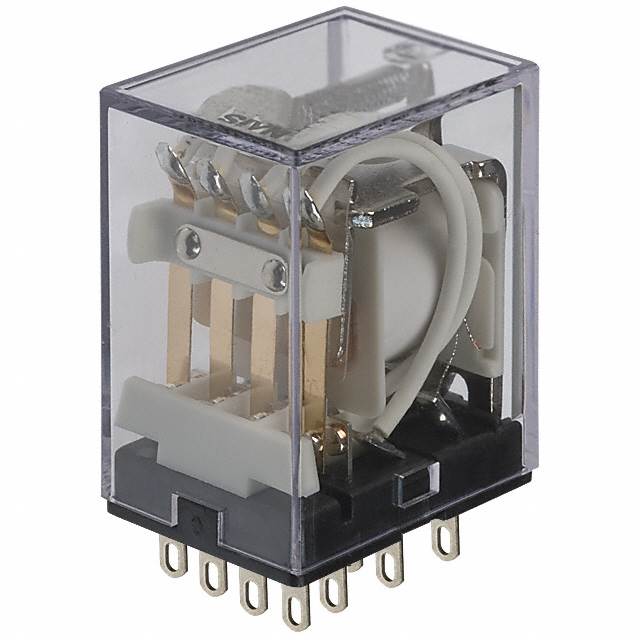

HJ4-AC48V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 5A 48V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 5A 48V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Relay Type	Coil Type	Coil Current	Approval Agency	Contact Rating (Current)	Coil Voltage	Operate Time	Load - Max Switching	Termination Style	Must Release Voltage	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Contact Form	Coil Resistance	Mounting Type	Release Time
Panasonic Electric Works HJ4-AC48V	Silver (Ag)	General Purpose	Non Latching	25.9 mA	cURus TUV	5 A	48 VAC/DC	20 ms	625 W 1250 VA	Plug In	14.4 VAC	125 VDC 250 VAC	-40 °C	70 °C	38.4 VAC	4PDT (4 Form C)	1853 Ohms	Socketable	20 ms
Panasonic Electric Works HJ4-AC24V-6	Gold (Au) Silver (Ag)	General Purpose	Non Latching	45.6 mA	cURus TUV	5 A	24 VAC	20 ms	625 W 1250 VA	Plug In	7.2 VAC	125 VDC 250 VAC	-40 °C	70 °C	19.2 VAC	4PDT (4 Form C)	526.316 Ohms	Socketable	20 ms
Panasonic Electric Works HJ4-AC24V	Silver (Ag)	General Purpose	Non Latching	45.6 mA	cURus TUV	5 A	24 VAC	20 ms	625 W 1250 VA	Plug In	7.2 VAC	125 VDC 250 VAC	-40 °C	70 °C	19.2 VAC	4PDT (4 Form C)	526.3 Ohms	Socketable	20 ms
