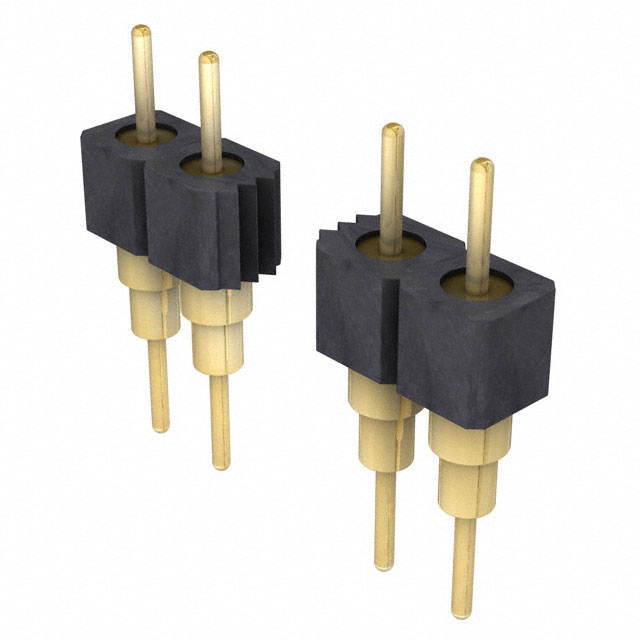

BBS-105-G-A
ActiveSamtec Inc.
CONN HEADER VERT 5POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BBS-105-G-A
ActiveSamtec Inc.
CONN HEADER VERT 5POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BBS-105-G-A |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Nickel |
| Contact Finish Thickness - Mating | 0.51 µm |
| Contact Finish Thickness - Mating | 20 µin |
| Contact Finish Thickness - Post | 1.27 µm |
| Contact Finish Thickness - Post | 50 µin |
| Contact Length - Mating | 0.125 in |
| Contact Length - Mating | 3.18 mm |
| Contact Length - Post [x] | 3.18 mm |
| Contact Length - Post [x] | 0.125 in |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 5.35 mm |
| Insulation Height [z] | 0.211 in |
| Insulation Material | Polyester, Glass Filled |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 11.68 mm |
| Overall Contact Length | 0.46 " |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
BBS-105 Series
| Part | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Contact Length - Mating | Contact Length - Mating | Insulation Material | Number of Positions Loaded | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height [z] | Insulation Height [z] | Contact Type | Mounting Type | Termination | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Overall Contact Length | Overall Contact Length | Insulation Color | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Fastening Type | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Gold | 0.51 µm | 20 µin | Unshrouded | 0.125 in | 3.18 mm | Polyester Glass Filled | All | Circular | 3.18 mm | 0.125 in | 5.35 mm | 0.211 in | Male Pin | Through Hole | Solder | Nickel | 0.1 in | 2.54 mm | 11.68 mm | 0.46 " | Black | 1 | 1.27 µm | 50 µin | -55 °C | 125 °C | Header | Push-Pull | ||
Samtec Inc. | Gold | 0.51 µm | 20 µin | Unshrouded | 0.125 in | 3.18 mm | Polyester Glass Filled | All | Circular | 3.18 mm | 0.125 in | Male Pin | Through Hole | Solder | Nickel | 0.1 in | 2.54 mm | Black | 1 | 1.27 µm | 50 µin | -55 °C | 125 °C | Header | Push-Pull | 0.835 " | 21.21 mm | ||||
Samtec Inc. | Unshrouded | 0.125 in | 3.18 mm | Polyester Glass Filled | All | Circular | 3.18 mm | 0.125 in | 5.35 mm | 0.211 in | Male Pin | Through Hole | Solder | Nickel | 0.1 in | 2.54 mm | 11.68 mm | 0.46 " | Black | 1 | 1.27 µm | 50 µin | -55 °C | 125 °C | Header | Push-Pull | |||||
Samtec Inc. | Unshrouded | 0.125 in | 3.18 mm | Polyester Glass Filled | All | Circular | 3.18 mm | 0.125 in | Male Pin | Through Hole | Solder | Nickel | 0.1 in | 2.54 mm | 21.21 mm | 0.835 in | Black | 1 | 1.27 µm | 50 µin | -55 °C | 125 °C | Header | Push-Pull | 0.585 in | 14.86 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.94 | |
| 10 | $ 2.67 | |||
| 100 | $ 2.36 | |||
| 500 | $ 2.00 | |||
| 1000 | $ 1.71 | |||
| 5000 | $ 1.55 | |||
Description
General part information
BBS-105 Series
Connector Header Through Hole 5 position 0.100" (2.54mm)
