SSQ-113-04-F-D

Active

Samtec Inc.

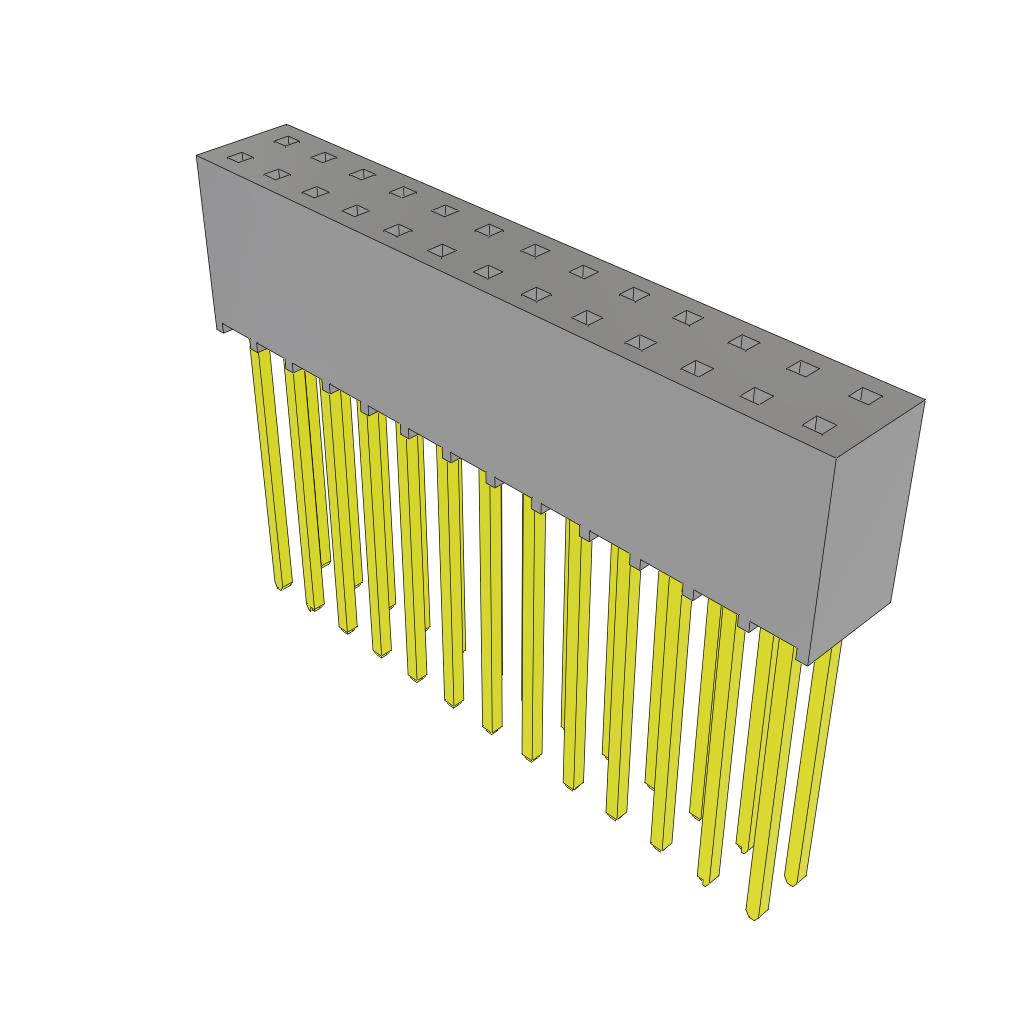

CONN RCPT 26POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTiger Buy™ Socket Strip with Square Tails, 0.100" Pitch Datasheet +1

SSQ-113-04-F-D

Active

Samtec Inc.

CONN RCPT 26POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsTiger Buy™ Socket Strip with Square Tails, 0.100" Pitch Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSQ-113-04-F-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Post [x]	0.584 "
Contact Length - Post [x]	14.83 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	465 VAC, 655 VDC

SSQ-113 Series

Part	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Number of Positions Loaded	Contact Finish - Post	Material Flammability Rating	Insulation Color	Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Fastening Type	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Connector Type	Insulation Material	Number of Positions	Contact Type	Style	Insulation Height	Insulation Height	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. SSQ-113-03-G-D	Phosphor Bronze	3 µin	0.076 µm	Gold	All	Gold	UL94 V-0	Black	Solder	Through Hole	-55 °C	125 °C	10 mm	0.394 in	Push-Pull	465 VAC 655 VDC	2.54 mm	0.1 in	0.1 in	2.54 mm	2	0.51 µm	20 µin	Square	Receptacle	Liquid Crystal Polymer (LCP)	26	Forked	Board to Board Cable	0.335 "	8.51 mm
Samtec Inc. SSQ-113-22-L-S-RA	Phosphor Bronze			Gold	All	Tin	UL94 V-0	Black	Solder	Through Hole Right Angle	-55 °C	125 °C	2.54 mm	0.1 in	Push-Pull	465 VAC 655 VDC			0.1 in	2.54 mm	1	0.25 çm	10 çin	Square	Receptacle	Liquid Crystal Polymer (LCP)	13	Forked	Board to Board Cable			0.095 in	2.41 mm
Samtec Inc. SSQ-113-04-F-D	Phosphor Bronze			Gold	All	Tin	UL94 V-0	Black	Solder	Through Hole	-55 °C	125 °C			Push-Pull	465 VAC 655 VDC	2.54 mm	0.1 in	0.1 in	2.54 mm	2	0.076 µm	3 µin	Square	Receptacle	Liquid Crystal Polymer (LCP)	26	Forked	Board to Board Cable	0.335 "	8.51 mm			0.584 "	14.83 mm
Samtec Inc. SSQ-113-02-G-S-RA	Phosphor Bronze	3 µin	0.076 µm	Gold	All	Gold	UL94 V-0	Black	Solder	Through Hole Right Angle	-55 °C	125 °C	2.54 mm	0.1 in	Push-Pull	465 VAC 655 VDC			0.1 in	2.54 mm	1	0.51 µm	20 µin	Square	Receptacle	Liquid Crystal Polymer (LCP)	13	Forked	Board to Board Cable			0.095 in	2.41 mm
Samtec Inc. SSQ-113-22-G-D	Phosphor Bronze	3 µin	0.076 µm	Gold	All	Gold	UL94 V-0	Black	Solder	Through Hole	-55 °C	125 °C	4.93 mm	0.194 in	Push-Pull	465 VAC 655 VDC	2.54 mm	0.1 in	0.1 in	2.54 mm	2	0.51 µm	20 µin	Square	Receptacle	Liquid Crystal Polymer (LCP)	26	Forked	Board to Board Cable	0.335 "	8.51 mm
Samtec Inc. SSQ-113-02-F-D-RA-LL	Phosphor Bronze			Gold	All	Tin	UL94 V-0	Black	Press-Fit Solder	Through Hole Right Angle	-55 °C	125 °C	2.54 mm	0.1 in	Push-Pull	465 VAC 655 VDC	2.54 mm	0.1 in	0.1 in	2.54 mm	2	0.076 µm	3 µin	Square	Receptacle	Liquid Crystal Polymer (LCP)	26	Forked	Board to Board Cable	0.195 in	4.95 mm
Samtec Inc. SSQ-113-23-S-D-RA	Phosphor Bronze			Gold	All	Tin	UL94 V-0	Black	Solder	Through Hole Right Angle	-55 °C	125 °C			Push-Pull	465 VAC 655 VDC	2.54 mm	0.1 in	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	Square	Receptacle	Liquid Crystal Polymer (LCP)	26	Forked	Board to Board Cable	0.195 in	4.95 mm			0.3 "	7.62 mm
Samtec Inc. SSQ-113-01-S-D-LL	Phosphor Bronze			Gold	All	Tin	UL94 V-0	Black	Press-Fit Solder	Through Hole	-55 °C	125 °C	2.64 mm	0.104 in	Push-Pull	465 VAC 655 VDC	2.54 mm	0.1 in	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	Square	Receptacle	Liquid Crystal Polymer (LCP)	26	Forked	Board to Board Cable	0.335 "	8.51 mm
Samtec Inc. SSQ-113-03-S-D	Phosphor Bronze			Gold	All	Tin	UL94 V-0	Black	Solder	Through Hole	-55 °C	125 °C	10 mm	0.394 in	Push-Pull	465 VAC 655 VDC	2.54 mm	0.1 in	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	Square	Receptacle	Liquid Crystal Polymer (LCP)	26	Forked	Board to Board Cable	0.335 "	8.51 mm
Samtec Inc. SSQ-113-03-F-D-RA	Phosphor Bronze			Gold	All	Tin	UL94 V-0	Black	Solder	Through Hole Right Angle	-55 °C	125 °C			Push-Pull	465 VAC 655 VDC	2.54 mm	0.1 in	0.1 in	2.54 mm	2	0.076 µm	3 µin	Square	Receptacle	Liquid Crystal Polymer (LCP)	26	Forked	Board to Board Cable	0.195 in	4.95 mm			0.3 "	7.62 mm
