704.064.2A

Active

EAO

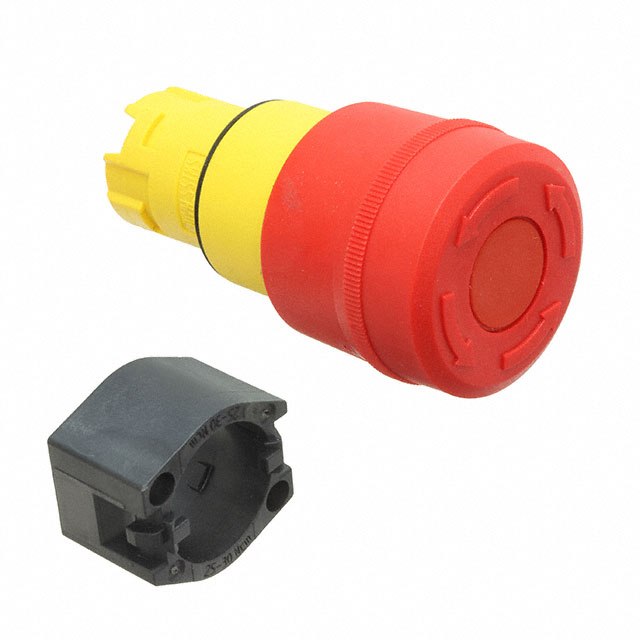

SWITCH ACTUATOR, EAO 04 SERIES 22.5MM EMERGENCY STOP PUSHBUTTON SWITCHES, IP65, 04 SERIES

Search across all available documentation for this part.

Active

EAO

SWITCH ACTUATOR, EAO 04 SERIES 22.5MM EMERGENCY STOP PUSHBUTTON SWITCHES, IP65, 04 SERIES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.064.2A	704.064 Series

(Select First, Then Apply Filters) Compatible Series	EAO, 84	EAO, 84, 04
Actuator Type	E-Stop, Round	E-Stop, Round
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions	-	22.3 mm
Panel Cutout Dimensions [diameter]	22.5 mm	22.5 mm
Requires	Contact Block(s)	Contact Block(s)
Type	Maintained	Maintained

SWITCH ACTUATOR, EAO 04 SERIES 22.5MM EMERGENCY STOP PUSHBUTTON SWITCHES, IP65, 04 SERIES

Part	Requires	Type	Illumination	Panel Cutout Dimensions [diameter]	Actuator Type	(Select First, Then Apply Filters) Compatible Series	Panel Cutout Dimensions
EAO 704.064.2A	Contact Block(s)	Maintained	Non-Illuminated	22.5 mm	E-Stop, Round	84, EAO
EAO 704.064.2	Contact Block(s)	Maintained	Non-Illuminated		E-Stop, Round	04, EAO	22.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body E-Stop, Round Non-Illuminated
