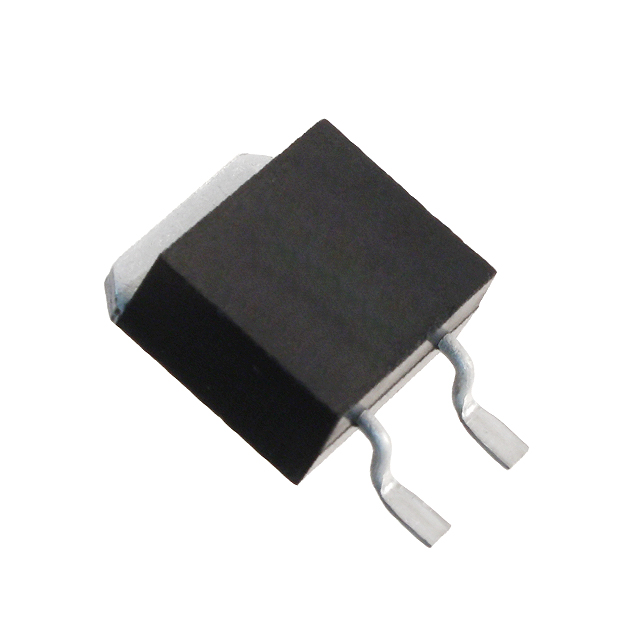

PWR263S-35-27R0FE

Active

Bourns Inc.

RES SMD 27 OHM 1% 35W D2PAK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PWR263S-35-27R0FE

Active

Bourns Inc.

RES SMD 27 OHM 1% 35W D2PAK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PWR263S-35-27R0FE

Composition	Thick Film
Features	Current Sense, Automotive AEC-Q200, Pulse Withstanding
Height - Seated (Max)	4.5 mm
Height - Seated (Max) [Max]	0.177 "
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Power (Watts)	35 W
Ratings	AEC-Q200
Resistance	27 Ohms
Size / Dimension [x]	10.1 mm
Size / Dimension [x]	0.398 in
Size / Dimension [y]	0.409 "
Size / Dimension [y]	10.4 mm
Supplier Device Package	TO-263
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

PWR263S Series

...

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations	Temperature Coefficient	Package / Case	Features	Ratings	Power (Watts)	Height - Seated (Max) [Max]	Height - Seated (Max)	Resistance	Tolerance	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Bourns Inc. PWR263S-35-4000JE	10.1 mm	0.409 "	10.4 mm	0.398 in	Thick Film	155 °C	-55 °C	2	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	AEC-Q200	35 W	0.177 "	4.5 mm	400 Ohms	5 %	TO-263
Bourns Inc. PWR263S-20-1502F	10.1 mm	0.409 "	10.4 mm	0.398 in	Thick Film	155 °C	-55 °C	2	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	AEC-Q200	20 W			15 kOhms	1 %	TO-263	0.192 in	4.88 mm
Bourns Inc. PWR263S-20-3300JE	10.1 mm	0.409 "	10.4 mm	0.398 in	Thick Film	155 °C	-55 °C	2	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	AEC-Q200	20 W			330 Ohms	5 %	TO-263	0.192 in	4.88 mm
Bourns Inc. PWR263S-35-1902JE	10.1 mm	0.409 "	10.4 mm	0.398 in	Thick Film	155 °C	-55 °C	2	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	AEC-Q200	35 W	0.177 "	4.5 mm	19 kOhms	5 %	TO-263
Bourns Inc. PWR263S-20-4702JE	10.1 mm	0.409 "	10.4 mm	0.398 in	Thick Film	155 °C	-55 °C	2	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	AEC-Q200	20 W			47 kOhms	5 %	TO-263	0.192 in	4.88 mm
Bourns Inc. PWR263S-35-27R0FE	10.1 mm	0.409 "	10.4 mm	0.398 in	Thick Film	155 °C	-55 °C	2	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	AEC-Q200	35 W	0.177 "	4.5 mm	27 Ohms	1 %	TO-263
Bourns Inc. PWR263S-35-1501F	10.1 mm	0.409 "	10.4 mm	0.398 in	Thick Film	155 °C	-55 °C	2	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	AEC-Q200	35 W	0.177 "	4.5 mm	1500 Ohms	1 %	TO-263
Bourns Inc. PWR263S-35-2000J	10.1 mm	0.409 "	10.4 mm	0.398 in	Thick Film	155 °C	-55 °C	2	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	AEC-Q200	35 W	0.177 "	4.5 mm	200 Ohms	5 %	TO-263
Bourns Inc. PWR263S-20-50R0J	10.1 mm	0.409 "	10.4 mm	0.398 in	Thick Film	155 °C	-55 °C	2	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	AEC-Q200	20 W			50 Ohms	5 %	TO-263	0.192 in	4.88 mm
Bourns Inc. PWR263S-35-R270F	10.1 mm	0.409 "	10.4 mm	0.398 in	Thick Film	155 °C	-55 °C	2	100 ppm/°C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Automotive AEC-Q200 Current Sense Pulse Withstanding	AEC-Q200	35 W	0.177 "	4.5 mm	270 mOhms	1 %	TO-263

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.89

Description

General part information

PWR263S Series

27 Ohms ±1% 35W Chip Resistor TO-263-3, D2PAK (2 Leads + Tab), TO-263AB Automotive AEC-Q200, Current Sense, Pulse Withstanding Thick Film
