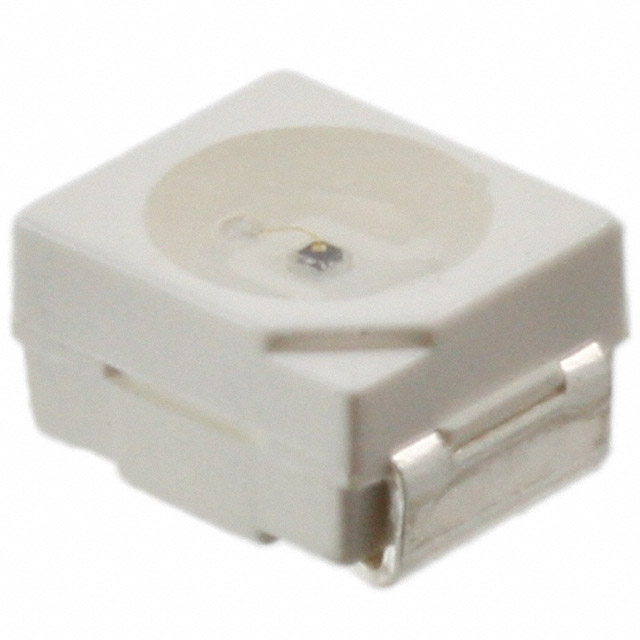

AA3528SRS

Obsolete

Kingbright

LED RED CLEAR SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AA3528SRS

Obsolete

Kingbright

LED RED CLEAR SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AA3528 Series

Red 640nm LED Indication - Discrete 1.85V 2-PLCC

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AA3528SRS	AA3528 Series

	-	-
Color	Red	Yellow, Green, Red, Blue, Pink, Violet
Configuration	Standard	Independent, Standard
Current	-	10 mA
Current - Dark (Id) (Max)	-	100 nA
Current - DC Forward (If) (Max)	-	50 mA
Current - Test	20 mA	2 - 20 mA
Height (Max) [Max] [z]	2.1 mm	2.1 - 2.15 mm
Lens Color	Colorless	Colorless
Lens Size	-	3 mm
Lens Size	-	T-1
Lens Size [diameter]	2.4 mm	2.4 mm
Lens Style	-	Round with Domed Top
Lens Transparency	Clear	Clear
Lens Type	-	Clear
Millicandela Rating	150 mcd	1.2 - 2700 mcd
Mounting Type	Surface Mount	Surface Mount, Surface Mount, Right Angle, Surface Mount, Bottom Entry
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Orientation	-	Top View
Package / Case	2-PLCC	2-SMD, Gull Wing, 2-PLCC, 4-PLCC
Power - Max	-	100 mW
Radiant Intensity (Ie) Min @ If	-	1.2 - 1.6 mW/sr
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	SMD	SMD, 2-SMD, 2-PLCC
Type	-	Infrared (IR)
Viewing Angle	120 °	50 - 120 °
Voltage - Collector Emitter Breakdown (Max)	-	30 V
Voltage - Forward (Vf) (Typ)	1.85 V	1.3 - 3.3 V
Voltage Rating	-	1.8 - 3.3 V
Wavelength	-	880 - 940 nm
Wavelength - Dominant	640 nm	465 - 640 nm
Wavelength - Peak	660 nm	460 - 660 nm
Wavelength - Peak	-	640 nm

AA3528 Series

LED YELLOW CLEAR SMD

Part	Current - Test	Lens Size [diameter]	Package / Case	Height (Max) [Max] [z]	Wavelength - Dominant	Lens Color	Lens Transparency	Voltage - Forward (Vf) (Typ)	Viewing Angle	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak	Mounting Type	Color	Supplier Device Package	Configuration	Voltage Rating	Current	Lens Type	Lens Style	Lens Size	Lens Size	Wavelength	Current - DC Forward (If) (Max) [Max]	Type	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If [Min]	Wavelength - Peak [custom]
Kingbright AA3528SYCKT09	20 mA	2.4 mm	2-SMD, Gull Wing	2.15 mm	590 nm	Colorless	Clear	2 V	120 °	250 mcd	2.8 mm	3.2 mm	590 nm	Surface Mount	Yellow	SMD
Kingbright AA3528CGCK	20 mA	2.4 mm	2-PLCC	2.1 mm	570 nm	Colorless	Clear	2.1 V	120 °	100 mcd	2.8 mm	3.2 mm		Surface Mount	Green	2-SMD	Independent
Kingbright AA3528AVU/ACGSK									50 °	15 mcd				Surface Mount, Right Angle	Green			2 V	10 mA	Clear	Round with Domed Top	3 mm	T-1
Kingbright AA3528CGSK	20 mA	2.4 mm	2-PLCC	2.1 mm	570 nm	Colorless	Clear	2.1 V	120 °	100 mcd	2.8 mm	3.2 mm		Surface Mount	Green	SMD	Standard
Kingbright AA3528SURSK	20 mA	2.4 mm	2-PLCC	2.1 mm	630 nm	Colorless	Clear	1.95 V	120 °	100 mcd	2.8 mm	3.2 mm	650 nm	Surface Mount	Red	SMD	Standard
Kingbright AA3528SF4S-R			2-PLCC					1.3 V	120 °					Surface Mount										880 nm	50 mA	Infrared (IR)	Top View	85 °C	-40 °C	1.2 mW/sr
Kingbright AA3528SYSK	20 mA	2.4 mm	2-PLCC	2.1 mm	590 nm	Colorless	Clear	2 V	120 °	200 mcd	2.8 mm	3.2 mm	590 nm	Surface Mount	Yellow	SMD	Standard
Kingbright AA3528SRS	20 mA	2.4 mm	2-PLCC	2.1 mm	640 nm	Colorless	Clear	1.85 V	120 °	150 mcd	2.8 mm	3.2 mm	660 nm	Surface Mount	Red	SMD	Standard
Kingbright AA3528QWC/D09			2-PLCC								2.8 mm	3.2 mm		Surface Mount		SMD
Kingbright AA3528SECKT/J3	20 mA	2.4 mm	2-PLCC	2.15 mm	625 nm	Colorless	Clear	2.2 V	120 °	1500 mcd	2.8 mm	3.2 mm		Surface Mount	Red	2-SMD	Independent														640 nm
