LD56050DPU100R

Active

STMicroelectronics

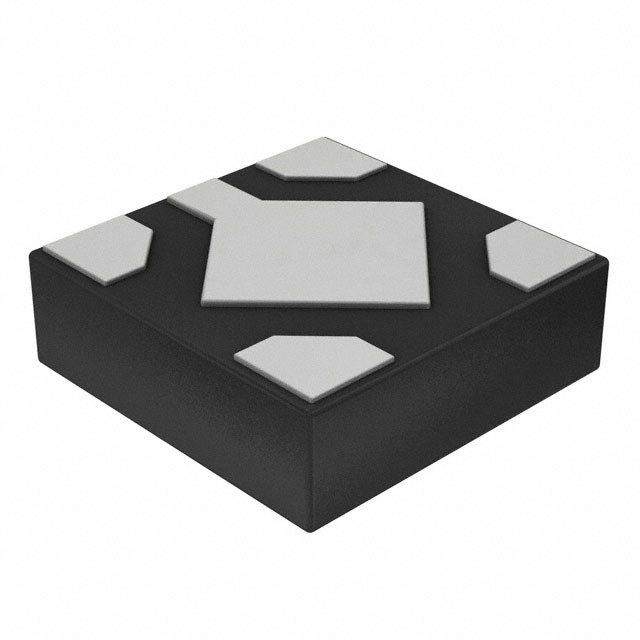

IC REG LINEAR 1V 500MA 4-DFN

Search across all available documentation for this part.

Active

STMicroelectronics

IC REG LINEAR 1V 500MA 4-DFN

Technical Specifications

Parameters and characteristics for this part

Specification	LD56050DPU100R

Control Features	Enable
Current - Output	500 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	4-XDFN Exposed Pad
Protection Features	Over Current, Over Temperature
PSRR	75 dB
Supplier Device Package	4-DFN (1.2x1.2)
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	1 V
Voltage Dropout (Max) [Max]	0.25 V

Part	Voltage Dropout (Max) [Max]	Number of Regulators	Supplier Device Package	PSRR	Package / Case	Voltage - Output (Min/Fixed)	Control Features	Mounting Type	Current - Output	Protection Features	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Output Type
STMicroelectronics LD56050DPU100R	0.25 V	1	4-DFN (1.2x1.2)	75 dB	4-XDFN Exposed Pad	1 V	Enable	Surface Mount	500 mA	Over Current Over Temperature	5.5 V	-40 °C	85 °C	Positive	1.81 mOhm
STMicroelectronics LD56050DPU105R	0.25 V	1	4-DFN (1.2x1.2)	75 dB	4-XDFN Exposed Pad	1.05 V	Enable	Surface Mount	500 mA	Over Temperature Short Circuit	5.5 V	-40 °C	85 °C	Positive	1.81 mOhm
STMicroelectronics LD56050DPU115R	0.25 V	1	4-DFN (1.2x1.2)	75 dB	4-XDFN Exposed Pad	1.15 V	Enable	Surface Mount	500 mA	Over Current Over Temperature	5.5 V	-40 °C	85 °C	Positive	1.81 mOhm
STMicroelectronics LD56050DPU150R	0.25 V	1	4-DFN (1.2x1.2)	75 dB	4-XDFN Exposed Pad	1.5 V	Enable	Surface Mount	500 mA	Over Current Over Temperature	5.5 V	-40 °C	85 °C	Positive	1.81 mOhm
STMicroelectronics LD56050DPU120R	0.25 V	1	4-DFN (1.2x1.2)	75 dB	4-XDFN Exposed Pad	1.2 V	Enable	Surface Mount	500 mA		5.5 V	-40 °C	85 °C	Positive	1.81 mOhm
