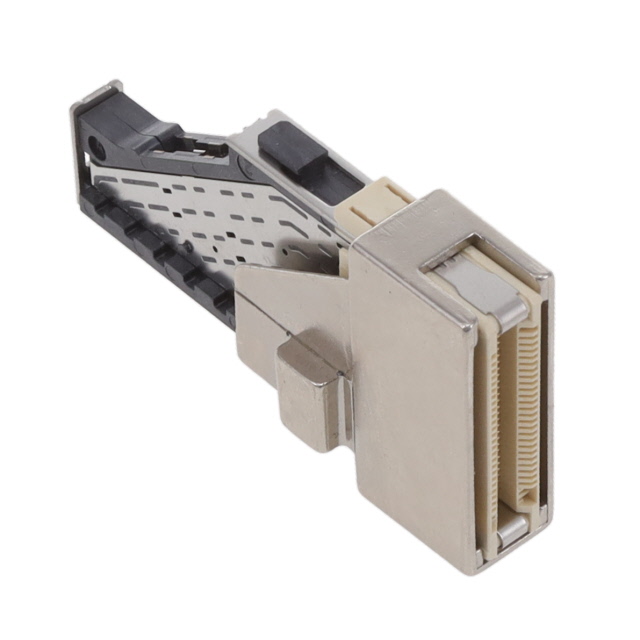

ME3005602311011

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 56POS 0.024

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 56POS 0.024

Technical Specifications

Parameters and characteristics for this part

Specification	ME3005602311011

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Natural
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	56
Number of Positions/Bay/Row [custom]	28
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.6 mm
Pitch [x]	0.024 in
Read Out	Dual
Termination	Press-Fit

Part	Gender	Mounting Type	Contact Material	Number of Positions/Bay/Row [custom]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Rows	Number of Positions	Material - Insulation	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Card Type	Contact Finish	Termination	Card Thickness	Card Thickness
Amphenol ICC (FCI) ME3005602311011	Female	Through Hole Right Angle	Copper Alloy	28	Dual	0.76 Ám	30 Áin	Natural	2	56	Thermoplastic	0.6 mm	0.024 in	105 ░C	-55 °C	Cantilever	Non Specified - Dual Edge	Gold	Press-Fit	0.062 in	1.57 mm
Amphenol ICC (FCI) ME3005602311041	Female	Through Hole Right Angle	Copper Alloy	28	Dual	0.76 Ám	30 Áin	Natural	2	56	Thermoplastic	0.6 mm	0.024 in	105 ░C	-55 °C	Cantilever	Non Specified - Dual Edge	Gold	Press-Fit	0.062 in	1.57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Natural
