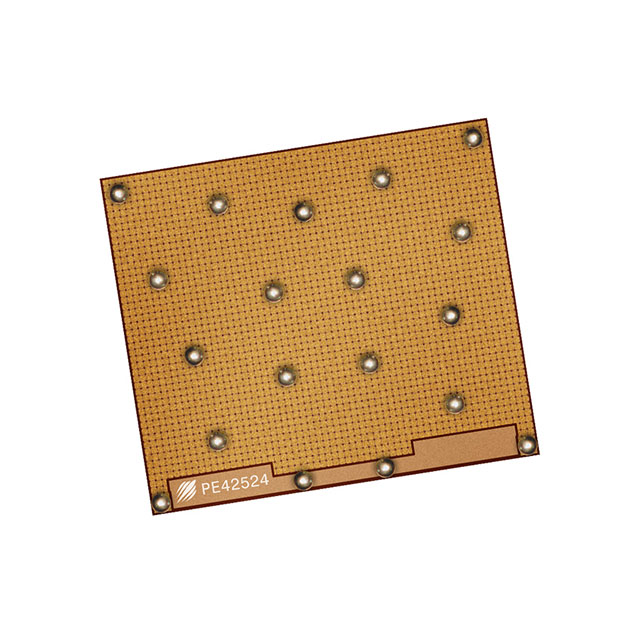

PE42524B-X

Active

pSemi Corporation

IC RF SWITCH SPDT 40GHZ DIE

Search across all available documentation for this part.

Active

pSemi Corporation

IC RF SWITCH SPDT 40GHZ DIE

Technical Specifications

Parameters and characteristics for this part

IC RF SWITCH SPDT 40GHZ DIE

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	IIP3	Supplier Device Package	Package / Case	Topology	Impedance	Circuit	Frequency Range [Min]	Frequency Range [Max]	Test Frequency	Test Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss
pSemi Corporation PE42524B-X	3.1 V	3.5 V	50 dBm	Die	Die	Reflective	50 Ohms	SPDT	10 MHz	40 GHz	-	40 GHz	85 °C	-40 °C	5.5 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Switch IC SPDT 40 GHz 50Ohm Die
