850-90-020-30-001000

Active

Mill-Max Manufacturing Corp.

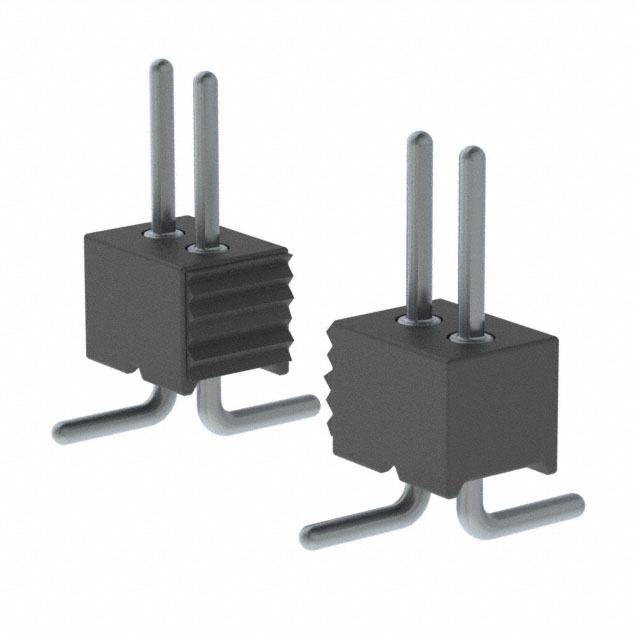

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

850-90-020-30-001000

Active

Mill-Max Manufacturing Corp.

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	850-90-020-30-001000

Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.087 "
Insulation Height	2.2 mm
Insulation Material	Polyamide (PA46), Nylon 4/6
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

850-90 Series

...

Part	Contact Material	Number of Positions Loaded	Number of Rows	Number of Positions	Mounting Type	Connector Type	Insulation Material	Shrouding	Fastening Type	Insulation Color	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Shape	Contact Finish - Mating	Contact Type	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post	Contact Length - Post	Number of Positions
Mill-Max Manufacturing Corp. 850-90-034-30-002000	Brass Alloy	All	1	34	Surface Mount	Header	Polyamide (PA46) Nylon 4/6	Unshrouded	Push-Pull	Black	Solder	200 µin	5.08 µm	0.05 in	1.27 mm	3 mm	0.118 in	0.087 "	2.2 mm	5.08 µm	200 µin	Tin-Lead	Circular	Tin-Lead	Male Pin
Mill-Max Manufacturing Corp. 850-90-046-30-001000	Brass Alloy	All	1	46	Surface Mount	Header	Polyamide (PA46) Nylon 4/6	Unshrouded	Push-Pull	Black	Solder	200 µin	5.08 µm	0.05 in	1.27 mm	3 mm	0.118 in	0.087 "	2.2 mm	5.08 µm	200 µin	Tin-Lead	Circular	Tin-Lead	Male Pin
Mill-Max Manufacturing Corp. 850-90-015-10-001000	Brass Alloy	All	1	15	Through Hole	Header	Polyamide (PA46) Nylon 4/6	Unshrouded	Push-Pull	Black	Solder	200 µin	5.08 µm	0.05 in	1.27 mm	3 mm	0.118 in	0.087 "	2.2 mm	5.08 µm	200 µin	Tin-Lead	Circular	Tin-Lead	Male Pin	8.1 mm	0.319 in	0.114 in	2.9 mm
Mill-Max Manufacturing Corp. 850-90-020-30-001000	Brass Alloy	All	1	20	Surface Mount	Header	Polyamide (PA46) Nylon 4/6	Unshrouded	Push-Pull	Black	Solder	200 µin	5.08 µm	0.05 in	1.27 mm	3 mm	0.118 in	0.087 "	2.2 mm	5.08 µm	200 µin	Tin-Lead	Circular	Tin-Lead	Male Pin
Mill-Max Manufacturing Corp. 850-90-018-30-002000	Brass Alloy	All	1	18	Surface Mount	Header	Polyamide (PA46) Nylon 4/6	Unshrouded	Push-Pull	Black	Solder	200 µin	5.08 µm	0.05 in	1.27 mm	3 mm	0.118 in	0.087 "	2.2 mm	5.08 µm	200 µin	Tin-Lead	Circular	Tin-Lead	Male Pin
Mill-Max Manufacturing Corp. 850-90-033-20-001000	Brass Alloy	All	1	33	Through Hole Right Angle	Header	Polyamide (PA46) Nylon 4/6	Unshrouded	Push-Pull	Black	Solder	200 µin	5.08 µm	0.05 in	1.27 mm	3 mm	0.118 in	0.087 "	2.2 mm	5.08 µm	200 µin	Tin-Lead	Circular	Tin-Lead	Male Pin			0.118 in	3 mm
Mill-Max Manufacturing Corp. 850-90-047-20-001000	Brass Alloy	All	1		Through Hole Right Angle	Header	Polyamide (PA46) Nylon 4/6	Unshrouded	Push-Pull	Black	Solder	200 µin	5.08 µm	0.05 in	1.27 mm	3 mm	0.118 in	0.087 "	2.2 mm	5.08 µm	200 µin	Tin-Lead	Circular	Tin-Lead	Male Pin			0.118 in	3 mm
Mill-Max Manufacturing Corp. 850-90-011-10-001000	Brass Alloy	All	1	11	Through Hole	Header	Polyamide (PA46) Nylon 4/6	Unshrouded	Push-Pull	Black	Solder	200 µin	5.08 µm	0.05 in	1.27 mm	3 mm	0.118 in	0.087 "	2.2 mm	5.08 µm	200 µin	Tin-Lead	Circular	Tin-Lead	Male Pin	8.1 mm	0.319 in	0.114 in	2.9 mm
Mill-Max Manufacturing Corp. 850-90-047-30-001000	Brass Alloy	All	1		Surface Mount	Header	Polyamide (PA46) Nylon 4/6	Unshrouded	Push-Pull	Black	Solder	200 µin	5.08 µm	0.05 in	1.27 mm	3 mm	0.118 in	0.087 "	2.2 mm	5.08 µm	200 µin	Tin-Lead	Circular	Tin-Lead	Male Pin
Mill-Max Manufacturing Corp. 850-90-016-10-001000	Brass Alloy	All	1		Through Hole	Header	Polyamide (PA46) Nylon 4/6	Unshrouded	Push-Pull	Black	Solder	200 µin	5.08 µm	0.05 in	1.27 mm	3 mm	0.118 in	0.087 "	2.2 mm	5.08 µm	200 µin	Tin-Lead	Circular	Tin-Lead	Male Pin	8.1 mm	0.319 in	0.114 in	2.9 mm	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 16.02

Description

General part information

850-90 Series

Connector Header Surface Mount 20 position 0.050" (1.27mm)
