6GK52022BB002BA3

Active

Siemens

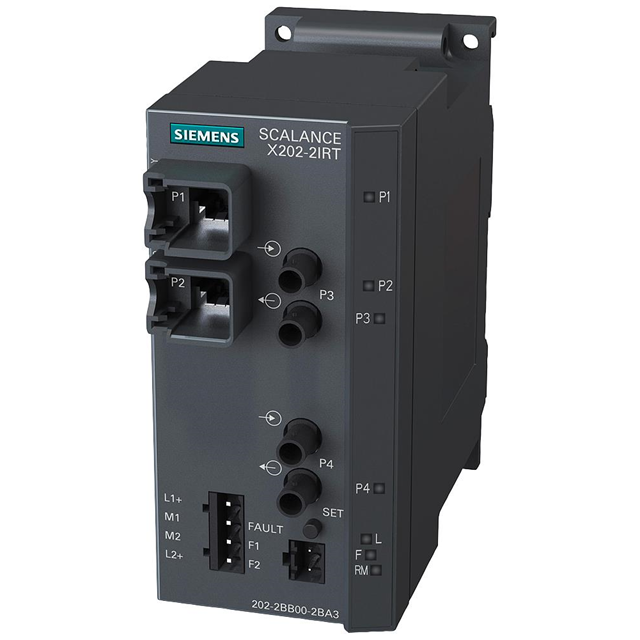

SIMATIC NET, SCALANCE X202-2IRT

Search across all available documentation for this part.

Active

Siemens

SIMATIC NET, SCALANCE X202-2IRT

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input [Max]	Voltage - Input [Min]	Copper Type	Configuration	Connector Type	Mounting Type	Ingress Protection	Copper Ports	Operating Temperature [Min]	Operating Temperature [Max]	Fiber Ports	Number of Ports
Siemens 6GK52022BB002BA3	32 V	18 V	10/100	Fixed	RJ45 ST	DIN Rail Wall Mount	IP30	2	-40 °C	60 °C	1	3
Siemens 6GK52022BH002BA3	32 V	18 V	10/100	Fixed	RJ45 SC	DIN Rail Wall Mount	IP30	2	-25 °C	60 °C	2	4
Siemens 6GK52022JR002BA6	32 V	18 V	10/100	Fixed	M12 RJ45 SC	DIN Rail Wall Mount	IP65 IP67	2	-25 °C	60 °C	2	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Network Switch - Managed 3 Ports IP30

Technical documentation and resources
