AM2D-0507DH52Z

Active

aimtec

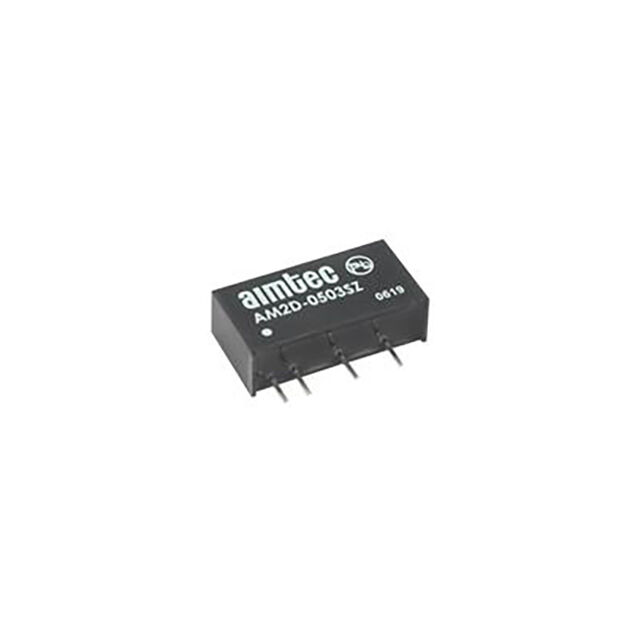

DC DC CONVERTER +/-7.2V 2W

AM2D-0507DH52Z

Active

aimtec

DC DC CONVERTER +/-7.2V 2W

Description Specifications Series Pricing CAD Documents

Description

General part information

AM2D Series

Isolated Module DC DC Converter 2 Output 7.2V -7.2V 139mA, 139mA 4.5V - 5.5V Input

Technical Specifications

Parameters and characteristics for this part

Specification	AM2D-0507DH52Z

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max)	139 mA
Efficiency	72 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	5 Leads
Package Name	7-SIP
Power (Watts)	2 w
Size / Dimension Height	0.39 in
Size / Dimension Length	0.77 in
Size / Dimension Width	0.24 in
Type	Isolated Module
Voltage - Input (Max)	5.5 V
Voltage - Input (Min)	4.5 V
Voltage - Isolation	5.2 kV
Voltage - Output 1	7.2 V
Voltage - Output 2	-7.2 V

AM2D Series

...

Part	Approval Agency	Voltage - Input (Max)	Voltage - Isolation	Voltage - Output 1	Power (Watts)	Type	Mounting Type	Voltage - Output 2	Package / Case	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Current - Output (Max)	Number of Outputs	Operating Temperature (Min)	Operating Temperature (Max)	Efficiency	Applications	Voltage - Input (Min)	Voltage - Output 1 (Min)	Voltage - Output 1 (Max)	Package Leads	Package Name
aimtec AM2D-240909DZ	CE	26.4 V	1000 Vrms	9 V	2 w	Isolated Module	Through Hole	9 V	7-SIP Module	0.39 in	0.24 in	0.77 in	111 mA	2	-40 °C	85 °C	78 %	ITE (Commercial)	21.6 V
aimtec AM2D-1224DZ	CE	13.2 V	1000 Vrms		2 w	Isolated Module	Through Hole	-24 V	7-SIP Module	0.39 in	0.24 in	0.76 in	42 mA	2	-40 °C	85 °C	82 %	ITE (Commercial)	10.8 V	-24 V	24 V
aimtec AM2D-1203DH52Z	CE	13.2 V	5.2 kV		2 w	Isolated Module	Through Hole	-3.3 V	7-SIP Module	0.39 in	0.24 in	0.76 in	200 mA	2	-40 °C	85 °C	67 %	ITE (Commercial)	10.8 V	-3.3 V	3.3 V
aimtec AM2D-0503DZ	CE	5.5 V	1000 Vrms		2 w	Isolated Module	Through Hole	-3.3 V	7-SIP Module	0.39 in	0.24 in	0.76 in	200 mA	2	-40 °C	85 °C	65 %	ITE (Commercial)	4.5 V	-3.3 V	3.3 V
aimtec AM2D-2405DH30Z	CE	26.4 V	3 kV		2 w	Isolated Module	Through Hole	-5 V	7-SIP Module	0.39 in	0.24 in	0.76 in	200 mA	2	-40 °C	85 °C	75 %	ITE (Commercial)	21.6 V	-5 V	5 V
aimtec AM2D-0515SH60Z	CE	5.5 V	6 kV	15 V	2 w	Isolated Module	Through Hole		7-SIP Module	0.39 in	0.24 in	0.76 in	134 mA	1	-40 °C	85 °C	82 %	ITE (Commercial)	4.5 V
aimtec AM2D-0507DH52Z	CE	5.5 V	5.2 kV	7.2 V	2 w	Isolated Module	Through Hole	-7.2 V		0.39 in	0.24 in	0.77 in	139 mA	2	-40 °C	85 °C	72 %	ITE (Commercial)	4.5 V			5 Leads	7-SIP
aimtec AM2D-2405SH60Z	CE	26.4 V	6 kV	5 V	2 w	Isolated Module	Through Hole			0.39 in	0.24 in	0.77 in	400 mA	1	-40 °C	85 °C	79 %	ITE (Commercial)	21.6 V			4 Leads	7-SIP Module
aimtec AM2D-2407DZ	CE	26.4 V	1000 Vrms		2 w	Isolated Module	Through Hole	-7.2 V	7-SIP Module	0.39 in	0.24 in	0.77 in	139 mA	2	-40 °C	85 °C	75 %	ITE (Commercial)	21.6 V	-7.2 V	7.2 V
aimtec AM2D-1207SZ	CE	13.2 V	1000 Vrms	7.2 V	2 w	Isolated Module	Through Hole		7-SIP Module	0.39 in	0.24 in	0.77 in	278 mA	1	-40 °C	85 °C	80 %	ITE (Commercial)	10.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

AM2D-0507DH52Z | Datasheet
