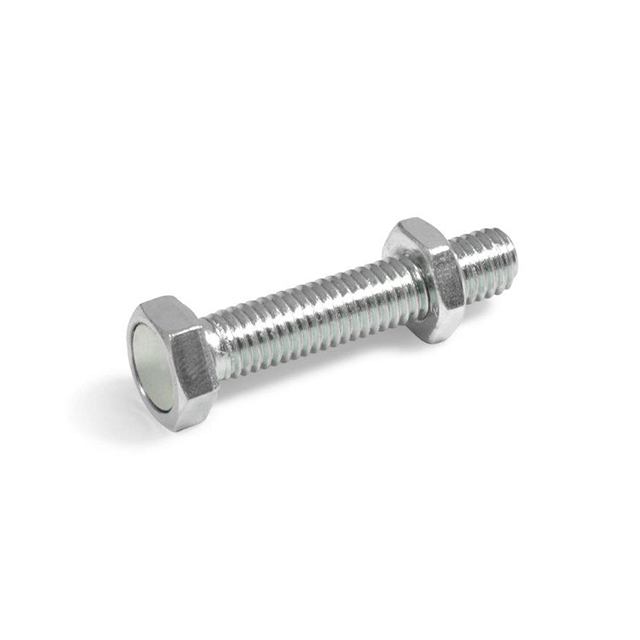

251.6-M12-25-ND

Active

J.W. Winco

MAGNET 0.748"D X 0.295"THICK CYL

Search across all available documentation for this part.

Active

J.W. Winco

MAGNET 0.748"D X 0.295"THICK CYL

Technical Specifications

Parameters and characteristics for this part

Part	Size [z]	Size [diameter]	Size [diameter]	Size [z]	Shape	Operating Temperature	Material	Size [diameter]	Size [z]
J.W. Winco 251.6-M12-25-ND	7.5 mm	0.748 in	19 mm	0.295 "	Cylindrical	80 °C	Neodymium Iron Boron (NdFeB)
J.W. Winco 251.6-M12-40-ND	7.5 mm	0.748 in	19 mm	0.295 "	Cylindrical	80 °C	Neodymium Iron Boron (NdFeB)
J.W. Winco 251.6-M16-80-ND	10 mm	0.945 in	24 mm	0.394 in	Cylindrical	80 °C	Neodymium Iron Boron (NdFeB)
J.W. Winco 251.6-M16-50-ND	10 mm	0.945 in	24 mm	0.394 in	Cylindrical	80 °C	Neodymium Iron Boron (NdFeB)
J.W. Winco 251.6-M6-12-ND	4 mm	0.394 in	10 mm	0.157 in	Cylindrical	80 °C	Neodymium Iron Boron (NdFeB)
J.W. Winco 251.6-M10-30-ND	6.4 mm		17 mm		Cylindrical	80 °C	Neodymium Iron Boron (NdFeB)	0.669 in	0.252 in
J.W. Winco 251.6-M10-20-ND	6.4 mm		17 mm		Cylindrical	80 °C	Neodymium Iron Boron (NdFeB)	0.669 in	0.252 in
J.W. Winco 251.6-M12-60-ND	7.5 mm	0.748 in	19 mm	0.295 "	Cylindrical	80 °C	Neodymium Iron Boron (NdFeB)
J.W. Winco 251.6-M16-40-ND	10 mm	0.945 in	24 mm	0.394 in	Cylindrical	80 °C	Neodymium Iron Boron (NdFeB)
J.W. Winco 251.6-M12-50-ND	7.5 mm	0.748 in	19 mm	0.295 "	Cylindrical	80 °C	Neodymium Iron Boron (NdFeB)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.57

General part information

Magnet Neodymium Iron Boron (NdFeB) 0.748" Dia x 0.295" H (19.00mm x 7.50mm)

Technical documentation and resources
