TSA894CT B0G

Active

Taiwan Semiconductor Corporation

TRANS PNP 500V 0.15A TO92

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

TRANS PNP 500V 0.15A TO92

Technical Specifications

Parameters and characteristics for this part

Specification	TSA894CT B0G

Current - Collector (Ic) (Max) [Max]	150 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	150
Frequency - Transition	50 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C

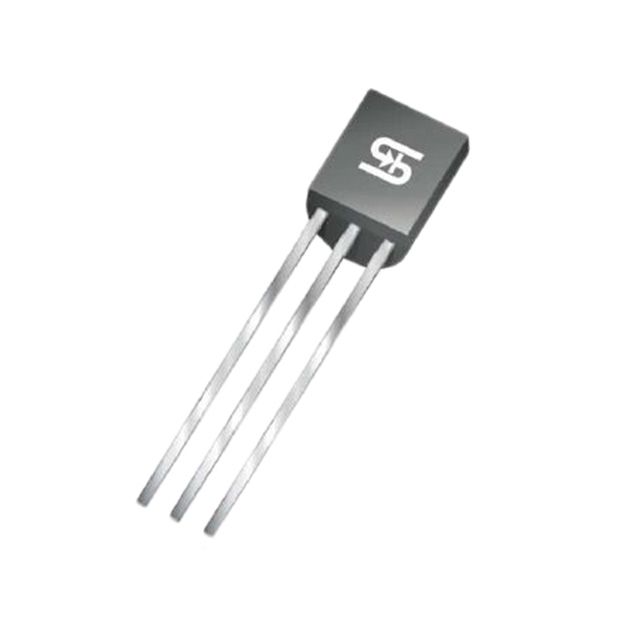

Package / Case	TO-226-3, TO-92-3
Power - Max [Max]	1 W
Supplier Device Package	TO-92
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	500 V

Part	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Transistor Type	Package / Case	Operating Temperature	Vce Saturation (Max) @ Ib, Ic	Supplier Device Package
Taiwan Semiconductor Corporation TSA894CT B0G	1 W	100 nA	50 MHz	Through Hole	150	500 V	150 mA	PNP	TO-226-3 TO-92-3	150 °C	500 mV	TO-92

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 500 V 150 mA 50MHz 1 W Through Hole TO-92
