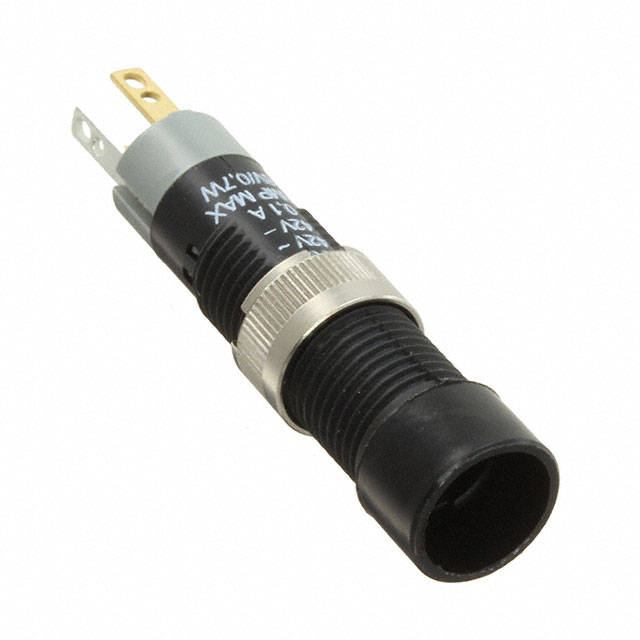

19-432.035
ActiveEAO
SWITCH PB SPST-NC 0.1A 50V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
19-432.035
ActiveEAO
SWITCH PB SPST-NC 0.1A 50V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 19-432.035 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button (Not Included) |
| Circuit | SPST-NC |
| Current Rating (Amps) | 100 mA |
| Ingress Protection | IP40 |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 8 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2 mm |
| Termination Style | 0.079 in |
| Type | Standard |
| Voltage Rating - AC | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.41 | |
| 10 | $ 17.63 | |||
| 100 | $ 15.35 | |||
19-432 Series
SWITCH PB SPST-NC 0.1A 50V
| Part | Circuit | Ingress Protection | Type | Actuator Marking | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Current Rating (Amps) | Mounting Type | Panel Cutout Dimensions [diameter] | Actuator Type | Termination Style | Termination Style | Termination Style | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 19-432.035 | SPST-NC | IP40 | Standard | No Marking | 50 V | 65 °C | -25 °C | On-Mom | 100 mA | Panel Mount, Front | 8 mm | Round, Button (Not Included) | Quick Connect, Solder | 2 mm | 0.079 in | 2000000 Cycles |
Description
General part information
19-432 Series
Pushbutton Switch SPST-NC Standard Panel Mount, Front
