630-25W3640-5TD

Active

EDAC Inc.

CONN D-SUB RCPT 25POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-25W3640-5TD

Active

EDAC Inc.

CONN D-SUB RCPT 25POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-25W3640-5TD

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets
Flange Feature	M3
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	25
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	DC, C - 25W3
Shell Size, Connector Layout [Min]	4
Termination	Solder
Voltage Rating	125 VDC

630-25W Series

...

Part	Current Rating (Amps)	Connector Type	Connector Style	Contact Material	Flange Feature	Mounting Type	Contact Type	Shell Material, Finish	Shell Size, Connector Layout	Shell Size, Connector Layout [Min]	Voltage Rating	Color	Dielectric Material	Number of Rows	Number of Positions [custom]	Number of Positions [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Termination	Contact Finish	Material Flammability Rating	Backset Spacing	Backset Spacing	Contact Finish Thickness	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Number of Positions [custom]
EDAC Inc. 630-25W3240-2N5	5 A 20 A	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	4-40	Through Hole Right Angle	Signal and Power	Nickel Plated Steel	DC C - 25W3	4	125 VDC	Black	Polyester Thermoplastic	2	22	3	-55 °C	125 °C	Board Lock Mounting Brackets	Solder	Gold	UL94 V-0	9.4 mm	0.37 in	Flash
EDAC Inc. 630-25W3640-1N2		Receptacle Female Sockets	Combo D-Sub	Copper Alloy	Housing/Shell (4-40)	Through Hole Right Angle	Signal and Power	Nickel Plated Steel	DC C - 25W3	4	125 VDC	Black	Polyester Thermoplastic	2	22	3	-55 °C	125 °C		Solder	Gold	UL94 V-0	9.4 mm	0.37 in		10A 5A	0.76 Ám	30 Áin
EDAC Inc. 630-25W3640-2N6	5 A 20 A	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	4-40	Through Hole Right Angle	Signal and Power	Nickel Plated Steel	DC C - 25W3	4	125 VDC	Black	Polyester Thermoplastic	2	22	3	-55 °C	125 °C		Solder	Gold	UL94 V-0	9.4 mm	0.37 in			0.76 Ám	30 Áin
EDAC Inc. 630-25W3240-4N5	5 A 40 A	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	4-40	Through Hole Right Angle	Signal and Power	Nickel Plated Steel	DC C - 25W3	4	125 VDC	Black	Polyester Thermoplastic	2	22	3	-55 °C	125 °C	Board Lock Mounting Brackets	Solder	Gold	UL94 V-0	9.4 mm	0.37 in	Flash
EDAC Inc. 630-25W3240-1T6		Receptacle Female Sockets	Combo D-Sub	Copper Alloy	4-40	Through Hole Right Angle	Signal and Power		DC C - 25W3	4	125 VDC	Black	Polyester Thermoplastic	2	22	3	-55 °C	125 °C		Solder	Gold	UL94 V-0	9.4 mm	0.37 in	Flash	10A 5A
EDAC Inc. 630-25W3640-5TD		Receptacle Female Sockets	Combo D-Sub	Copper Alloy	M3	Through Hole Right Angle	Coax Signal		DC C - 25W3	4	125 VDC	Black	Polyester Thermoplastic	2			-55 °C	125 °C	Board Lock Mounting Brackets	Solder	Gold	UL94 V-0	9.4 mm	0.37 in			0.76 Ám	30 Áin	25	3
EDAC Inc. 630-25W3650-4T5	5 A 40 A	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	4-40	Through Hole Right Angle	Signal and Power		DC C - 25W3	4	125 VDC	Black	Polyester Thermoplastic	2	22	3	-55 °C	125 °C	Board Lock Mounting Brackets	Solder	Gold	UL94 V-0	9.4 mm	0.37 in			0.76 Ám	30 Áin
EDAC Inc. 630-25W3240-2NA	5 A 20 A	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	Board Side (M3)	Through Hole Right Angle	Signal and Power	Nickel Plated Steel	DC C - 25W3	4	125 VDC	Black	Polyester Thermoplastic	2	22	3	-55 °C	125 °C		Solder	Gold	UL94 V-0	9.4 mm	0.37 in	Flash
EDAC Inc. 630-25W3640-1T3		Receptacle Female Sockets	Combo D-Sub	Copper Alloy	Housing/Shell (4-40)	Through Hole Right Angle	Signal and Power		DC C - 25W3	4	125 VDC	Black	Polyester Thermoplastic	2	22	3	-55 °C	125 °C	Board Lock Mounting Brackets	Solder	Gold	UL94 V-0	9.4 mm	0.37 in		10A 5A	0.76 Ám	30 Áin
EDAC Inc. 630-25W3250-4TE	5 A 40 A	Receptacle Female Sockets	Combo D-Sub	Copper Alloy	M3	Through Hole Right Angle	Signal and Power		DC C - 25W3	4	125 VDC	Black	Polyester Thermoplastic	2	22	3	-55 °C	125 °C	Mounting Brackets	Solder	Gold	UL94 V-0	9.4 mm	0.37 in	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 22.82

Description

General part information

630-25W Series

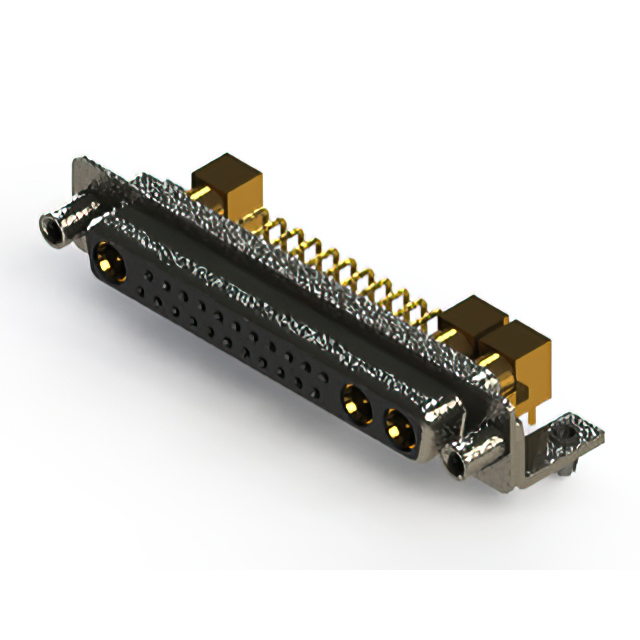

25 (22 + 3 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
