6773332323F

Active

DIALIGHT

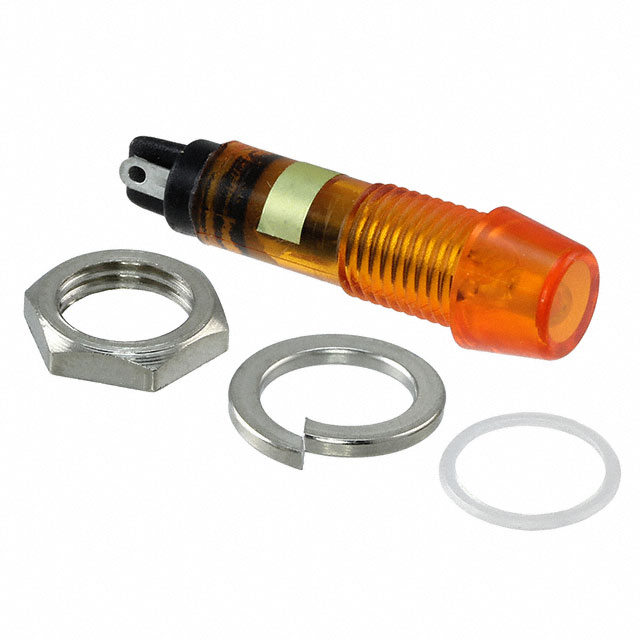

7MM HO/O PMI-6VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

7MM HO/O PMI-6VDC W/O-RING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6773332323F	6773332 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Orange	Orange
Millicandela Rating	1280 mcd	1280 - 3500 mcd
Panel Cutout Dimensions	-	7.2 mm
Panel Cutout Dimensions	-	0.28 in
Panel Cutout Dimensions [diameter]	7.11 mm	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "	0.28 "
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	25 °
Voltage	6 V	6 - 24 V
Wavelength - Peak	-	605 nm

LED PANEL INDCATOR ORANGE 12V

Part	Type	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Wavelength - Peak	Millicandela Rating	Ratings	Lamp Color	Termination Style	Viewing Angle	Panel Cutout Shape	Current	Ingress Protection	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]
DIALIGHT 6773332333F	LED	12 V	7.2 mm	0.28 in	605 nm	3500 mcd	DC	Orange	Solder Lug	25 °	Round	30 mA	IP66, NEMA 4X
DIALIGHT 6773332323F	LED	6 V				1280 mcd	DC	Orange	Solder Lug		Round	30 mA	IP66, NEMA 4X	7.11 mm	0.28 "
DIALIGHT 6773332343F	LED	24 V	7.2 mm	0.28 in	605 nm	3500 mcd	DC	Orange	Solder Lug	25 °	Round	30 mA	IP66, NEMA 4X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Orange 6V 30mA Solder Lug
