2967675
ActivePhoenix Contact

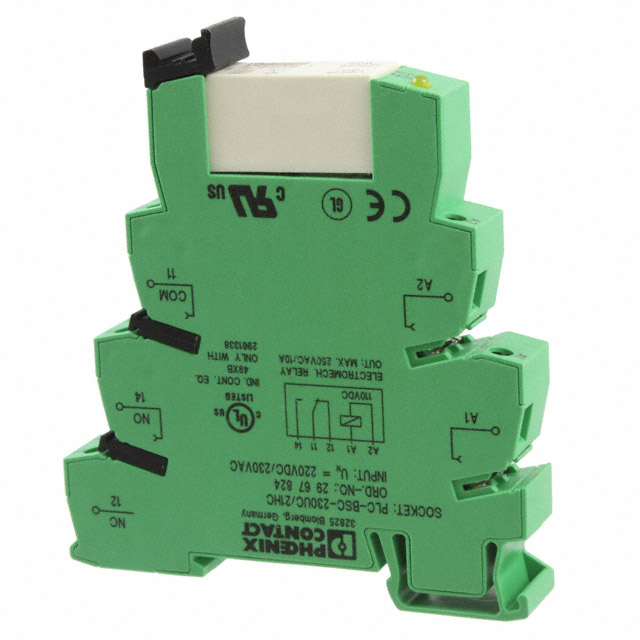

RELAY MODULE SCREW CONNECTION TERMINAL SPDT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2967675
ActivePhoenix Contact
RELAY MODULE SCREW CONNECTION TERMINAL SPDT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2967675 | 29676 Series |
|---|---|---|
| Approval Agency | UKCA, CE | UKCA, CE |
| Coil Current | 4.5 mA | 4.5 - 20 mA |
| Coil Resistance | 51.1 kOhms | 2.4 - 1440 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 230 VAC | 24 - 230 VAC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 10 A | 10 A |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included, Diode |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 7 ms | 7 - 8 ms |
| Operating Temperature [Max] | 55 °C | 55 - 60 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 10 ms | 10 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal |
29676 Series
RELAY MODULE SCREW CONNECTION TERMINAL SPDT
| Part | Release Time | Contact Rating (Current) | Operate Time | Contact Material | Switching Voltage | Termination Style | Relay Type | Approval Agency | Coil Type | Coil Current | Contact Form | Coil Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2967675 | 10 ms | 10 A | 7 ms | Silver Nickel (AgNi) | 250 VAC, 250 VDC | Screw Terminal | General Purpose | CE, UKCA | Non Latching | 4.5 mA | SPDT (1 Form C) | 230 VAC | -40 °C | 55 °C | DIN Rail | 51.1 kOhms | Lighted Indicator, Socket Included |
Phoenix Contact 2967620 | 10 ms | 10 A | 8 ms | Silver Nickel (AgNi) | 250 VAC, 250 VDC | Screw Terminal | General Purpose | CE, UKCA | Non Latching | 18 mA | SPDT (1 Form C) | 24 VDC | -40 °C | 60 °C | DIN Rail | 1440 Ohms | Lighted Indicator, Socket Included |
Phoenix Contact 2967662 | 10 ms | 10 A | 7 ms | Silver Nickel (AgNi) | 250 VAC, 250 VDC | Screw Terminal | General Purpose | CE, UKCA | Non Latching | 4.5 mA | SPDT (1 Form C) | 120 VAC, 120 VDC | -40 °C | 60 °C | DIN Rail | 26.66 kOhms | Lighted Indicator, Socket Included |
Phoenix Contact 2967659 | 10 ms | 10 A | 8 ms | Silver Nickel (AgNi) | 250 VAC, 250 VDC | Screw Terminal | General Purpose | CE, UKCA | Non Latching | 10 mA | SPDT (1 Form C) | 60 VDC | -40 °C | 60 °C | DIN Rail | 6 kOhms | Diode, Lighted Indicator, Socket Included |
Phoenix Contact 2967646 | 10 ms | 10 A | 8 ms | Silver Nickel (AgNi) | 250 VAC, 250 VDC | Screw Terminal | General Purpose | CE, UKCA | Non Latching | 20 mA | SPDT (1 Form C) | 48 VDC | -40 °C | 60 °C | DIN Rail | 2.4 kOhms | Diode, Lighted Indicator, Socket Included |
Phoenix Contact 2967633 | 10 ms | 10 A | 8 ms | Silver Nickel (AgNi) | 250 VAC, 250 VDC | Screw Terminal | General Purpose | CE, UKCA | Non Latching | 17.5 mA | SPDT (1 Form C) | 24 VAC | -40 °C | 60 °C | DIN Rail | 1371 Ohms | Lighted Indicator, Socket Included |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 49.96 | |
| 10 | $ 46.69 | |||
| 50 | $ 42.96 | |||
| 100 | $ 39.69 | |||
| 250 | $ 37.82 | |||
Description
General part information
29676 Series
General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail
