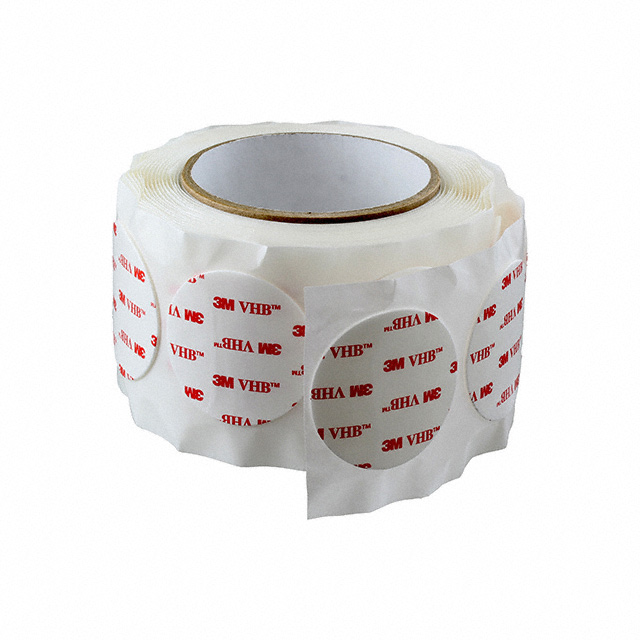

4952CIR-2(5)

Active

3M (TC)

TAPE DBL SIDED WHITE 2" DIA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsVHB™ Specialty Tape Datasheet

4952CIR-2(5)

Active

3M (TC)

TAPE DBL SIDED WHITE 2" DIA

Deep-Dive with AI

DocumentsVHB™ Specialty Tape Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4952CIR-2(5)

Adhesive	Acrylic
Backing, Carrier	Paper
Color	White
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	71 °C
Temperature Range	160 °F
Thickness	1.143 mm
Thickness	45 mils
Thickness	0.045 in
Thickness - Adhesive [custom]	42 mils
Thickness - Adhesive [custom]	0.042 in
Thickness - Adhesive [custom]	1.067 mm
Thickness - Backing, Carrier	0.003 in
Thickness - Backing, Carrier	3 mils
Thickness - Backing, Carrier	0.076 mm
Width [diameter]	2 in
Width [diameter]	50.8 mm

4952 Series

...

Part	Width [x]	Width [x]	Length	Length	Shelf Life	Color	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Temperature Range	Temperature Range	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life Start	Tape Type	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness	Thickness	Thickness	Backing, Carrier	Width [y]	Width [y]	Length	Width [diameter]	Width [diameter]	Width	Width	Width	Width
3M (TC) 3M 4952 3" X 9"-6	76.2 mm	3 in	9 "	228.6 mm	24 Months	White	0.003 in	3 mils	0.076 mm	Acrylic	71 °C	160 °F	4 °C 40 °F	38 °C 100 °F	Date of Shipment	Double Coated Double Sided	42 mils	0.042 in	1.067 mm	1.143 mm	45 mils	0.045 in	Paper
3M (TC) 3M 4952 3" X 10"-6	76.2 mm	3 in	10 in	254 mm	24 Months	White	0.003 in	3 mils	0.076 mm	Acrylic	71 °C	160 °F	4 °C 40 °F	38 °C 100 °F	Date of Shipment	Double Coated Double Sided	42 mils	0.042 in	1.067 mm	1.143 mm	45 mils	0.045 in	Paper
3M (TC) 4952-5-1.25(25)			1.25 in	31.75 mm	24 Months	White	0.003 in	3 mils	0.076 mm	Acrylic	71 °C	160 °F	4 °C 40 °F	38 °C 100 °F	Date of Shipment	Double Coated Double Sided	42 mils	0.042 in	1.067 mm	1.143 mm	45 mils	0.045 in	Paper	127 mm	5 in
3M (TC) 4952CIR-2(5)					24 Months	White	0.003 in	3 mils	0.076 mm	Acrylic	71 °C	160 °F	4 °C 40 °F	38 °C 100 °F	Date of Shipment	Double Coated Double Sided	42 mils	0.042 in	1.067 mm	1.143 mm	45 mils	0.045 in	Paper				2 in	50.8 mm
3M (TC) 4952SQ-9(2)	228.6 mm	9 in	9 "	228.6 mm	24 Months	White	0.003 in	3 mils	0.076 mm	Acrylic	71 °C	160 °F	4 °C 40 °F	38 °C 100 °F	Date of Shipment	Double Coated Double Sided	42 mils	0.042 in	1.067 mm	1.143 mm	45 mils	0.045 in	Paper
3M (TC) 3M 4952 1" X 1.5"-25	25.4 mm	1 in	1.5 "	38.1 mm	24 Months	White	0.003 in	3 mils	0.076 mm	Acrylic	71 °C	160 °F	4 °C 40 °F	38 °C 100 °F	Date of Shipment	Double Coated Double Sided	42 mils	0.042 in	1.067 mm	1.143 mm	45 mils	0.045 in	Paper
3M (TC) 3M 4952 CIRCLE-1"-250					24 Months	White	0.003 in	3 mils	0.076 mm	Acrylic	71 °C	160 °F	4 °C 40 °F	38 °C 100 °F	Date of Shipment	Double Coated Double Sided	42 mils	0.042 in	1.067 mm	1.143 mm	45 mils	0.045 in	Paper				1 in	25.4 mm
3M (TC) 3M 4952 1.5" X 6"-10			6 in	152.4 mm	24 Months	White	0.003 in	3 mils	0.076 mm	Acrylic	71 °C	160 °F	4 °C 40 °F	38 °C 100 °F	Date of Shipment	Double Coated Double Sided	42 mils	0.042 in	1.067 mm	1.143 mm	45 mils	0.045 in	Paper						1.5 "	38.1 mm	1 1/2
3M (TC) 1.125-5-4952			15 ft	4.6 m	24 Months	White	0.003 in	3 mils	0.076 mm	Acrylic	71 °C	160 °F	4 °C 40 °F	38 °C 100 °F	Date of Shipment	Double Coated Double Sided	42 mils	0.042 in	1.067 mm	1.143 mm	45 mils	0.045 in	Paper			5 yd			1.13 in	28.58 mm
3M (TC) 3M 4952 0.75" X 8"-12			8 in	203.2 mm	24 Months	White	0.003 in	3 mils	0.076 mm	Acrylic	71 °C	160 °F	4 °C 40 °F	38 °C 100 °F	Date of Shipment	Double Coated Double Sided	42 mils	0.042 in	1.067 mm	1.143 mm	45 mils	0.045 in	Paper						0.75 in	0.75 in		19.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 25.51

Description

General part information

4952 Series

Double Coated, Double Sided Tape Acrylic Adhesive White 2.00" (50.80mm) dia X

Documents

Technical documentation and resources

VHB™ Specialty Tape Datasheet

Datasheet
