1045725-1

Active

TE Connectivity Aerospace, Defense and Marine

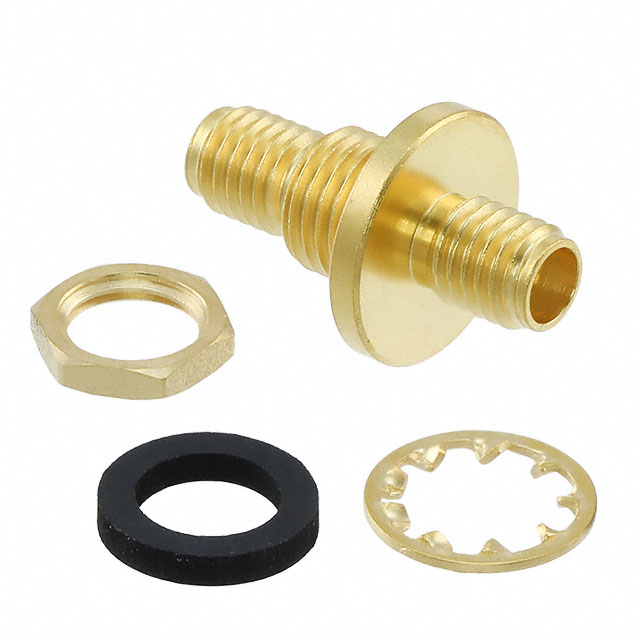

CONN ADAPT JACK-JACK OSSM 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

1045725-1

Active

TE Connectivity Aerospace, Defense and Marine

CONN ADAPT JACK-JACK OSSM 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1045725-1	1045 Series

Adapter Series	OSSM to OSSM	OSSM to OSSM
Adapter Type	Jack to Jack	Jack to Jack, Plug to Jack
Body Finish	Gold	Gold
Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Connector Style	-	SSMA
Connector Type	-	Receptacle, Female Socket, Jack
Contact Termination	-	Solder Cup, Solder
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	SSMA Jack, Female Socket	SSMA Jack, Female Socket, SSMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, SSMA Jack	Female Socket, SSMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Features	-	Extended Insulation
Frequency - Max	-	18 - 40 GHz
Housing Color	-	Silver, Gold
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead	Flange, Bulkhead - Front Side Nut, Bulkhead, Bulkhead - Front or Rear Side Nut
Mounting Type	-	Right Angle, Panel Mount, Free Hanging (In-Line)
Number of Ports	-	1
Operating Temperature	-	125 - 165 °C
Operating Temperature	-	-65 ░C
Shield Termination	-	Solder
Style	Straight	Straight, Right Angle

1045 Series

CONN SSMA RCPT R/A 50 OHM SOLDER

Part	Connector Type	Dielectric Material	Number of Ports	Shield Termination	Connector Style	Housing Color	Body Material	Center Contact Plating	Features	Mounting Type	Mounting Feature	Center Contact Material	Contact Termination	Impedance	Body Finish	Center Gender	Includes	Convert From (Adapter End)	Convert To (Adapter End)	Adapter Type	Adapter Series	Style	Frequency - Max [Max]	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Aerospace, Defense and Marine 1045621-1	Female Socket, Receptacle	Polytetrafluoroethylene (PTFE)	1	Solder	SSMA	Silver	Stainless Steel	Gold	Extended Insulation	Panel Mount, Right Angle	Flange	Beryllium Copper	Solder Cup	50 Ohms
TE Connectivity Aerospace, Defense and Marine 1045629-1	Female Socket, Receptacle	Polytetrafluoroethylene (PTFE)	1	Solder	SSMA	Gold	Stainless Steel	Gold	Extended Insulation		Bulkhead - Front Side Nut	Beryllium Copper	Solder Cup	50 Ohms	Gold
TE Connectivity Aerospace, Defense and Marine 1045723-1		Polytetrafluoroethylene (PTFE)					Stainless Steel	Gold			Bulkhead	Beryllium Copper		50 Ohms		Female to Female	1 Connector, 1 Lockwasher, 1 Nut	SSMA Jack, Female Socket	Female Socket, SSMA Jack	Jack to Jack	OSSM to OSSM	Straight	40 GHz	Same Series	125 °C	-65 ░C
TE Connectivity Aerospace, Defense and Marine 1045725-1		Polytetrafluoroethylene (PTFE)					Stainless Steel	Gold			Bulkhead	Beryllium Copper		50 Ohms	Gold	Female to Female	1 Connector, 1 Lockwasher, 1 Nut	SSMA Jack, Female Socket	Female Socket, SSMA Jack	Jack to Jack	OSSM to OSSM	Straight		Same Series
TE Connectivity Aerospace, Defense and Marine 1045642-1	Female Socket, Jack	Polytetrafluoroethylene (PTFE)	1	Solder	SSMA	Gold	Stainless Steel	Gold			Bulkhead - Front or Rear Side Nut	Beryllium Copper	Solder	50 Ohms	Gold								38 GHz
TE Connectivity Aerospace, Defense and Marine 1045746-1		Polytetrafluoroethylene (PTFE)					Stainless Steel	Gold		Free Hanging (In-Line), Right Angle		Beryllium Copper		50 Ohms	Gold			SSMA Plug, Male Pin	Female Socket, SSMA Jack	Plug to Jack	OSSM to OSSM	Right Angle	18 GHz	Same Series	165 °C	-65 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 324.42

Description

General part information

1045 Series

Adapter Coaxial Connector SSMA Jack, Female Socket To SSMA Jack, Female Socket 50 Ohms
