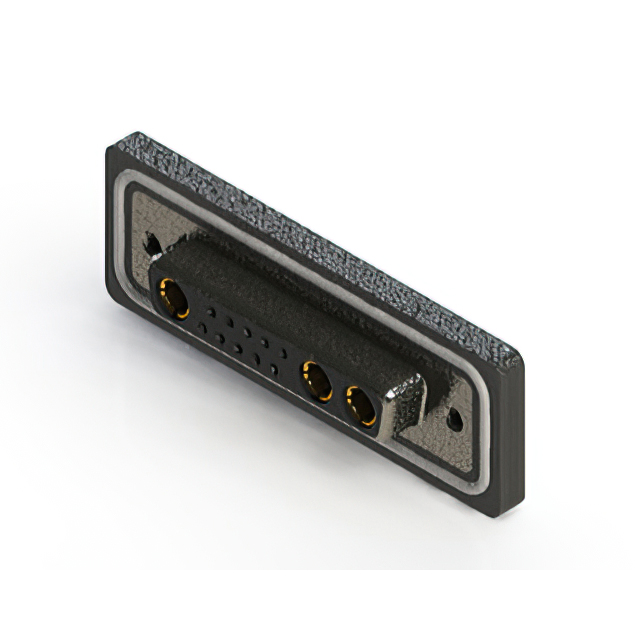

628W13W3624-2NA
ActiveEDAC Inc.
CONN D-SUB RCPT 13P PNL MNT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
628W13W3624-2NA
ActiveEDAC Inc.
CONN D-SUB RCPT 13P PNL MNT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 628W13W3624-2NA |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5 A, 20 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Shielded |
| Flange Feature | Housing/Shell (M3) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 10 |
| Number of Positions [custom] | 3 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 13W3, 13C3, B, DB |
| Shell Size, Connector Layout | 3 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
628W13W Series
| Part | Dielectric Material | Material Flammability Rating | Number of Rows | Current Rating (Amps) | Color | Connector Style | Flange Feature | Voltage Rating | Mounting Type | Number of Positions [custom] | Number of Positions [custom] | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material, Finish | Termination | Ingress Protection | Contact Material | Contact Finish | Contact Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | 2 | 5 A 40 A | Black | Combo D-Sub | Housing/Shell (M3) | 125 VDC | Panel Mount Through Hole | 10 | 3 | 15 µin | 0.38 µm | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | Shielded | -25 °C | 85 °C | Nickel Plated Steel | Solder | IP67 - Dust Tight Waterproof | Copper Alloy | Gold | Signal and Power | |
EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | 2 | 5 A 30 A | Black | Combo D-Sub | Housing/Shell (4-40) | 125 VDC | Panel Mount Through Hole | 10 | 3 | 15 µin | 0.38 µm | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | Shielded | -25 °C | 85 °C | Nickel Plated Steel | Solder | IP67 - Dust Tight Waterproof | Copper Alloy | Gold | Signal and Power | |
EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | 2 | 5 A 20 A | Black | Combo D-Sub | Housing/Shell (M3) | 125 VDC | Panel Mount Through Hole | 10 | 3 | 15 µin | 0.38 µm | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | Shielded | -25 °C | 85 °C | Nickel Plated Steel | Solder | IP67 - Dust Tight Waterproof | Copper Alloy | Gold | Signal and Power | |
EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | 2 | Black | Combo D-Sub | Board Side (M3) | 125 VDC | Panel Mount Through Hole | 10 | 3 | 15 µin | 0.38 µm | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | Board Lock Shielded | -25 °C | 85 °C | Nickel Plated Steel | Solder | IP67 - Dust Tight Waterproof | Copper Alloy | Gold | Signal and Power | 10A 5A | |
EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | 2 | 5 A 20 A | Black | Combo D-Sub | Housing/Shell (M3) | 125 VDC | Panel Mount Through Hole | 10 | 3 | 30 Áin | 0.76 Ám | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | Shielded | -25 °C | 85 °C | Nickel Plated Steel | Solder | IP67 - Dust Tight Waterproof | Copper Alloy | Gold | Signal and Power | |
EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | 2 | 5 A 20 A | Black | Combo D-Sub | Housing/Shell (4-40) | 125 VDC | Panel Mount Through Hole | 10 | 3 | 30 Áin | 0.76 Ám | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | Shielded | -25 °C | 85 °C | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Copper Alloy | Gold | Signal and Power | ||
EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | 2 | 5 A 20 A | Black | Combo D-Sub | 4-40 Board Side | 125 VDC | Panel Mount Through Hole | 10 | 3 | 30 Áin | 0.76 Ám | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | Board Lock Shielded | -25 °C | 85 °C | Nickel Plated Steel | Solder | IP67 - Dust Tight Waterproof | Copper Alloy | Gold | Signal and Power | |
EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | 2 | 5 A 30 A | Black | Combo D-Sub | Housing/Shell (4-40) | 125 VDC | Panel Mount Through Hole | 10 | 3 | 15 µin | 0.38 µm | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | Shielded | -25 °C | 85 °C | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Copper Alloy | Gold | Signal and Power | ||
EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | 2 | 5 A 30 A | Black | Combo D-Sub | Housing/Shell (M3) | 125 VDC | Panel Mount Through Hole | 10 | 3 | 15 µin | 0.38 µm | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | Shielded | -25 °C | 85 °C | Nickel Plated Steel | Solder | IP67 - Dust Tight Waterproof | Copper Alloy | Gold | Signal and Power | |
EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | 2 | 5 A 30 A | Black | Combo D-Sub | Housing/Shell (4-40) | 125 VDC | Panel Mount Through Hole | 10 | 3 | 5 µin | 0.127 µm | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | Shielded | -25 °C | 85 °C | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Copper Alloy | Gold | Signal and Power |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 23.92 | |
Description
General part information
628W13W Series
13 (10 + 3 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
