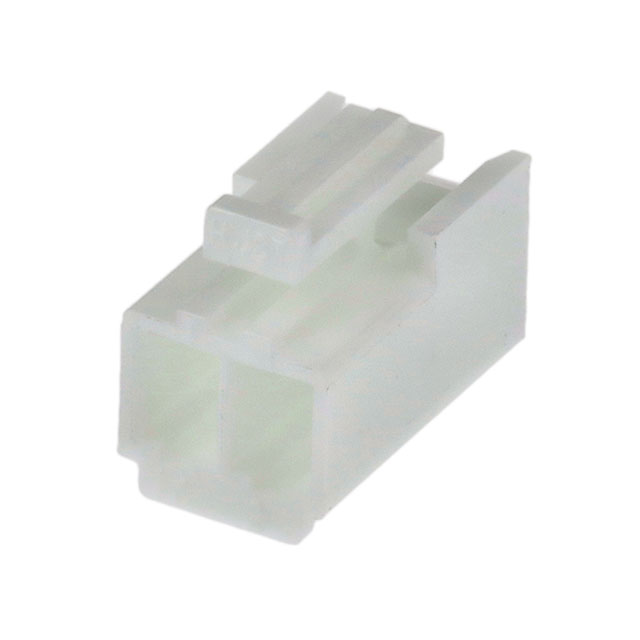

Specification	VHR-2M

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Electric Shock Prevention
Insulation Material	Nylon 6, Polyamide (PA6)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch	0.156 in

VHR Series

Part	Note	Number of Rows	Contact Termination	Contact Type	Features	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Color	Insulation Material	Pitch	Fastening Type	Number of Positions	Connector Type
JST Sales America Inc. VHR-2M	Contacts Not Included	1	Crimp	Female Socket	Electric Shock Prevention	85 °C	-25 °C	Free Hanging (In-Line)	Natural	Nylon 6 Polyamide (PA6)	0.156 in	Latch Lock	2	Receptacle
JST Sales America Inc. VHR-10N	Contacts Not Included	1	Crimp	Female Socket		85 °C	-25 °C	Free Hanging (In-Line)	Natural	Nylon 6 Polyamide (PA6)	0.156 in	Latch Lock	10	Receptacle
JST Sales America Inc. VHR-2N	Contacts Not Included	1	Crimp	Female Socket		85 °C	-25 °C	Free Hanging (In-Line)	Natural	Nylon 6 Polyamide (PA6)	0.156 in	Latch Lock	2	Receptacle
JST Sales America Inc. VHR-8N	Contacts Not Included	1	Crimp	Female Socket		85 °C	-25 °C	Free Hanging (In-Line)	Natural	Nylon 6 Polyamide (PA6)	0.156 in	Latch Lock	8	Receptacle
JST Sales America Inc. VHR-5M	Contacts Not Included	1	Crimp	Female Socket	Electric Shock Prevention	85 °C	-25 °C	Free Hanging (In-Line)	Natural	Nylon 6 Polyamide (PA6)	0.156 in	Latch Lock	5	Receptacle
JST Sales America Inc. VHR-6N	Contacts Not Included	1	Crimp	Female Socket		85 °C	-25 °C	Free Hanging (In-Line)	Natural	Nylon 6 Polyamide (PA6)	0.156 in	Latch Lock	6	Receptacle
JST Sales America Inc. VHR-9M	Contacts Not Included	1	Crimp	Female Socket		85 °C	-25 °C	Free Hanging (In-Line)	Natural	Nylon 6 Polyamide (PA6)	0.156 in	Latch Lock	9	Receptacle
JST Sales America Inc. VHR-6M	Contacts Not Included	1	Crimp	Female Socket	Electric Shock Prevention	85 °C	-25 °C	Free Hanging (In-Line)	Natural	Nylon 6 Polyamide (PA6)	0.156 in	Latch Lock	6	Receptacle
JST Sales America Inc. VHR-3N-BK	Contacts Not Included	1	Crimp	Female Socket		85 °C	-25 °C	Free Hanging (In-Line)	Black	Nylon 6 Polyamide (PA6)	0.156 in	Latch Lock	3	Receptacle
JST Sales America Inc. VHR-4M	Contacts Not Included	1	Crimp	Female Socket	Electric Shock Prevention	85 °C	-25 °C	Free Hanging (In-Line)	Natural	Nylon 6 Polyamide (PA6)	0.156 in	Latch Lock	4	Receptacle
