819-22-006-30-001101

Active

Mill-Max Manufacturing Corp.

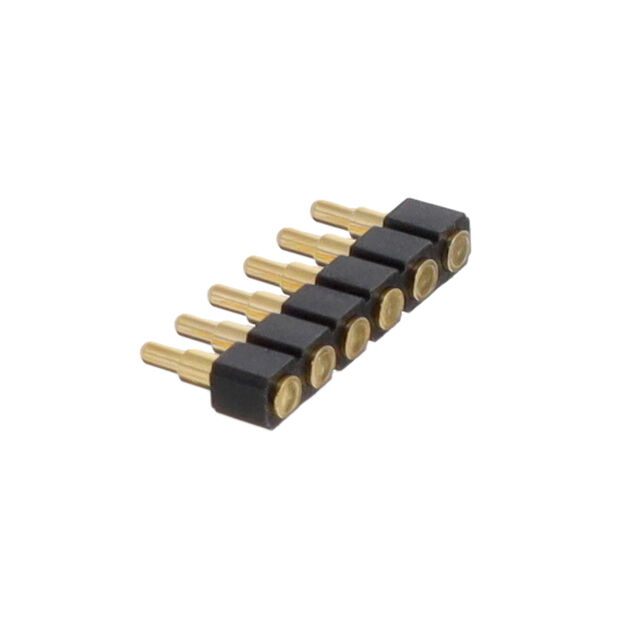

CONN SPRING PISTON 6POS SMD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 6POS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Number of Contacts [custom]	Mounting Type	Pitch [x]	Pitch [x]	Material	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Contacts
Mill-Max Manufacturing Corp. 819-22-004-30-001101	1	4	Surface Mount	2.54 mm	0.1 in	Copper Alloy	Piston	10 Áin	0.25 Ám	Gold
Mill-Max Manufacturing Corp. 819-22-006-30-001101	1	6	Surface Mount	2.54 mm	0.1 in	Copper Alloy	Piston	10 Áin	0.25 Ám	Gold
Mill-Max Manufacturing Corp. 819-22-029-30-001101	1		Surface Mount	2.54 mm	0.1 in	Copper Alloy	Piston	10 Áin	0.25 Ám	Gold	29
Mill-Max Manufacturing Corp. 819-22-063-30-001101	1		Surface Mount	2.54 mm	0.1 in	Copper Alloy	Piston	10 Áin	0.25 Ám	Gold	63
Mill-Max Manufacturing Corp. 819-22-011-30-001101	1	11	Surface Mount	2.54 mm	0.1 in	Copper Alloy	Piston	10 Áin	0.25 Ám	Gold
Mill-Max Manufacturing Corp. 819-22-025-30-001101	1		Surface Mount	2.54 mm	0.1 in	Copper Alloy	Piston	10 Áin	0.25 Ám	Gold	25
Mill-Max Manufacturing Corp. 819-22-047-30-001101	1		Surface Mount	2.54 mm	0.1 in	Copper Alloy	Piston	10 Áin	0.25 Ám	Gold	47
Mill-Max Manufacturing Corp. 819-22-015-30-001101	1		Surface Mount	2.54 mm	0.1 in	Copper Alloy	Piston	10 Áin	0.25 Ám	Gold	15
Mill-Max Manufacturing Corp. 819-22-005-30-001101	1		Surface Mount	2.54 mm	0.1 in	Copper Alloy	Piston	10 Áin	0.25 Ám	Gold	5
Mill-Max Manufacturing Corp. 819-22-040-30-001101	1		Surface Mount	2.54 mm	0.1 in	Copper Alloy	Piston	10 Áin	0.25 Ám	Gold	40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Spring Piston Connector Surface Mount
