1092C1-250VAC

Active

Visual Communications Company - VCC

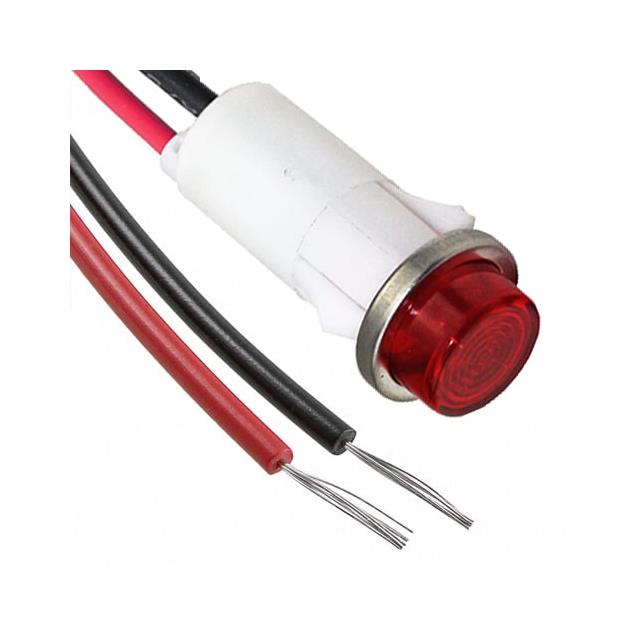

LED PMI 5MM RED HI HAT WIRE

Deep-Dive with AI

Search across all available documentation for this part.

1092C1-250VAC

Active

Visual Communications Company - VCC

LED PMI 5MM RED HI HAT WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	200	$ 3.60

Description

General part information

1092C Series

LED Panel Indicator Red Diffused 250V 25mA Wire Leads - 4.8" (121.92mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1092C1-250VAC	1092C Series

Current	25 mA	25 mA
Lamp Color	Red	Clear, Blue, Green, Amber, Red
Lens Color	Red	Colorless, Blue, Green, Amber, Red
Lens Size	-	T-1 3/4
Lens Size	-	5 mm
Lens Transparency	Diffused	Clear, Diffused
Millicandela Rating	13000 mcd	3200 - 13000 mcd
Panel Cutout Dimensions	12.7 mm	12.7 mm
Panel Cutout Dimensions	0.5 in	0.5 in
Panel Cutout Shape	Round	Round
Ratings	AC	AC, DC, AC/DC
Termination Style	Wire Leads - 4.8" (121.92mm)	Wire Leads - 4.8" (121.92mm), Wire Leads
Termination Style	-	4.6 in
Termination Style	-	116.84 mm
Type	LED	LED
Voltage	250 V	12 - 250 V
Wavelength - Peak	-	468 nm

1092C Series

PMI RND .5" LED CLR HI-HAT 125V

Part	Lamp Color	Voltage	Type	Lens Transparency	Panel Cutout Shape	Current	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Size	Lens Size	Millicandela Rating	Lens Color	Ratings	Termination Style	Wavelength - Peak	Termination Style	Termination Style
Visual Communications Company - VCC 1092C2-125VAC	Clear	125 V	LED	Clear	Round	25 mA	12.7 mm	0.5 in	T-1 3/4	5 mm	7000 mcd	Colorless	AC	Wire Leads - 4.8" (121.92mm)	468 nm
Visual Communications Company - VCC 1092C6-28V	Blue	28 V	LED	Clear	Round	25 mA	12.7 mm	0.5 in			3200 mcd	Blue	DC	Wire Leads		4.6 in	116.84 mm
Visual Communications Company - VCC 1092C5-250VAC	Green	250 V	LED	Diffused	Round	25 mA	12.7 mm	0.5 in			12000 mcd	Green	AC	Wire Leads - 4.8" (121.92mm)
Visual Communications Company - VCC 1092C2-12V	Clear	12 V	LED	Clear	Round	25 mA	12.7 mm	0.5 in	T-1 3/4	5 mm	7000 mcd	Colorless	AC/DC	Wire Leads - 4.8" (121.92mm)	468 nm
Visual Communications Company - VCC 1092C3-125VAC	Amber	125 V	LED	Diffused	Round	25 mA	12.7 mm	0.5 in			13000 mcd	Amber	AC	Wire Leads		4.6 in	116.84 mm
Visual Communications Company - VCC 1092C5-12V	Green	12 V	LED	Diffused	Round	25 mA	12.7 mm	0.5 in			12000 mcd	Green	DC	Wire Leads		4.6 in	116.84 mm
Visual Communications Company - VCC 1092C3-250VAC	Amber	250 V	LED	Diffused	Round	25 mA	12.7 mm	0.5 in			13000 mcd	Amber	AC	Wire Leads - 4.8" (121.92mm)
Visual Communications Company - VCC 1092C2-28V	Clear	28 V	LED	Clear	Round	25 mA	12.7 mm	0.5 in	T-1 3/4	5 mm	7000 mcd	Colorless	AC/DC	Wire Leads - 4.8" (121.92mm)	468 nm
Visual Communications Company - VCC 1092C1-125VAC	Red	125 V	LED	Diffused	Round	25 mA	12.7 mm	0.5 in			13000 mcd	Red	AC	Wire Leads		4.6 in	116.84 mm
Visual Communications Company - VCC 1092C1-250VAC	Red	250 V	LED	Diffused	Round	25 mA	12.7 mm	0.5 in			13000 mcd	Red	AC	Wire Leads - 4.8" (121.92mm)
