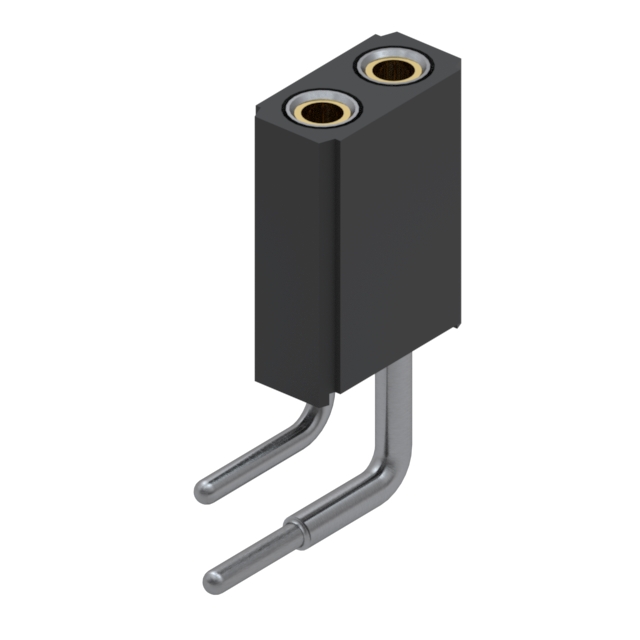

803-43-002-20-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 2POS GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

803-43-002-20-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 2POS GOLD PCB R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	803-43-002-20-001000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

803-43 Series

...

Part	Contact Shape	Contact Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Fastening Type	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Termination	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Material Flammability Rating	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Number of Positions
Mill-Max Manufacturing Corp. 803-43-028-10-002000	Circular	Female Socket	All	2.54 mm	0.1 in	2	200 µin	5.08 µm	Beryllium Copper	Push-Pull	4.5 A	Through Hole	-55 °C	125 °C	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	Solder	0.165 in	4.2 mm	3.18 mm	0.125 in	Tin	UL94 V-0	28	Receptacle	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 803-43-052-62-001000	Circular	Female Socket	All	2.54 mm	0.1 in	2	200 µin	5.08 µm	Beryllium Copper	Push-Pull	4.5 A	Through Hole	-55 °C	125 °C	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	Press-Fit Solder	0.276 in	7 mm	3.63 mm	0.143 in	Tin	UL94 V-0	52	Receptacle	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 803-43-004-10-003000	Circular	Female Socket	All	2.54 mm	0.1 in	2	200 µin	5.08 µm	Beryllium Copper	Push-Pull	4.5 A	Through Hole	-55 °C	125 °C	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	Solder	0.165 in	4.2 mm	3.18 mm	0.125 in	Tin	UL94 V-0	4	Receptacle	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 803-43-002-20-001000	Circular	Female Socket	All	2.54 mm	0.1 in	2	200 µin	5.08 µm	Beryllium Copper	Push-Pull	4.5 A	Through Hole Right Angle	-55 °C	125 °C	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	Solder				0.126 in	Tin	UL94 V-0	2	Receptacle			3.2 mm
Mill-Max Manufacturing Corp. 803-43-028-62-001000	Circular	Female Socket	All	2.54 mm	0.1 in	2	200 µin	5.08 µm	Beryllium Copper	Push-Pull	4.5 A	Through Hole	-55 °C	125 °C	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	Press-Fit Solder	0.276 in	7 mm	3.63 mm	0.143 in	Tin	UL94 V-0	28	Receptacle	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 803-43-008-10-001000	Circular	Female Socket	All	2.54 mm	0.1 in	2	200 µin	5.08 µm	Beryllium Copper	Push-Pull	4.5 A	Through Hole	-55 °C	125 °C	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	Solder	0.276 in	7 mm			Tin	UL94 V-0	8	Receptacle	0.1 in	2.54 mm	3 mm	0.118 in
Mill-Max Manufacturing Corp. 803-43-062-20-001000	Circular	Female Socket	All	2.54 mm	0.1 in	2	200 µin	5.08 µm	Beryllium Copper	Push-Pull	4.5 A	Through Hole Right Angle	-55 °C	125 °C	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	Solder				0.126 in	Tin	UL94 V-0	62	Receptacle	0.1 in	2.54 mm	3.2 mm
Mill-Max Manufacturing Corp. 803-43-016-10-002000	Circular	Female Socket	All	2.54 mm	0.1 in	2	200 µin	5.08 µm	Beryllium Copper	Push-Pull	4.5 A	Through Hole	-55 °C	125 °C	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	Solder	0.165 in	4.2 mm	3.18 mm	0.125 in	Tin	UL94 V-0		Receptacle	0.1 in	2.54 mm			16
Mill-Max Manufacturing Corp. 803-43-014-10-003000	Circular	Female Socket	All	2.54 mm	0.1 in	2	200 µin	5.08 µm	Beryllium Copper	Push-Pull	4.5 A	Through Hole	-55 °C	125 °C	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	Solder	0.165 in	4.2 mm	3.18 mm	0.125 in	Tin	UL94 V-0	14	Receptacle	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 803-43-022-10-003000	Circular	Female Socket	All	2.54 mm	0.1 in	2	200 µin	5.08 µm	Beryllium Copper	Push-Pull	4.5 A	Through Hole	-55 °C	125 °C	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	Gold	Solder	0.165 in	4.2 mm	3.18 mm	0.125 in	Tin	UL94 V-0	22 positions	Receptacle	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.28
		10	$ 0.98
		100	$ 0.75
		500	$ 0.63
		1000	$ 0.59
		5000	$ 0.50
		10000	$ 0.47

Description

General part information

803-43 Series

2 Position Receptacle Connector Through Hole, Right Angle Gold
