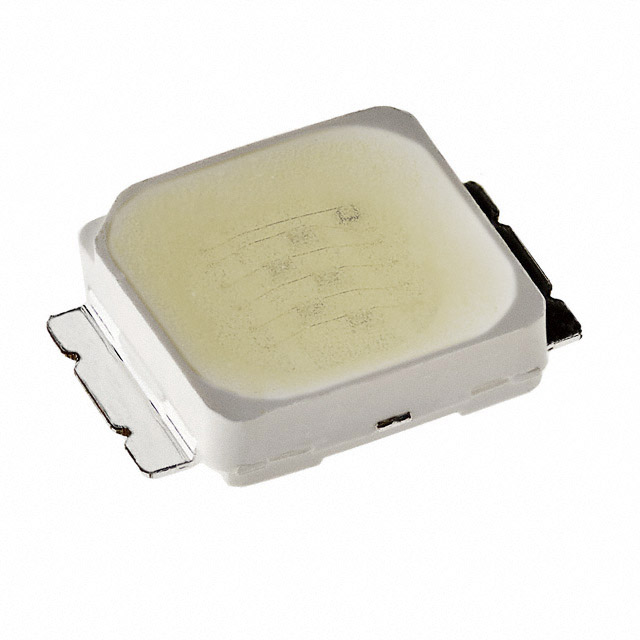

MX6SWT-A1-0000-000EF4

Obsolete

Cree LED

LED XLAMP NEUTRAL WHT 4750K SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MX6SWT-A1-0000-000EF4

Obsolete

Cree LED

LED XLAMP NEUTRAL WHT 4750K SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MX6SWT-A1-0000-000EF4

CCT (K)	4750 K
Color	Neutral, White
Current - Max [Max]	175 mA
Current - Test	60 mA
Flux @ 25°C, Current - Test	118 lm
Height - Seated (Max) [Max] [z]	1.48 mm
Height - Seated (Max) [Max] [z]	0.058 in
Lumens/Watt @ Current - Test	98 lm/W
Mounting Type	Surface Mount
Package / Case	2-SMD, Gull Wing
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Supplier Device Package	SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	20 V

MX6SWT Series

...

Part	Package / Case	Supplier Device Package	Current - Test	Flux @ 25°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Mounting Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Color	CRI (Color Rendering Index)	CCT (K)	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]
Cree LED MX6SWT-H1-0000-0009B4	2-SMD Gull Wing	SMD	60 mA	84 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	70 lm/W	White	80
Cree LED MX6SWT-A1-0000-000CA7	2-SMD Gull Wing	SMD	60 mA	104 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	87 lm/W	Warm White	80	3250 K
Cree LED MX6SWT-A1-0000-000FB1	2-SMD Gull Wing	SMD	60 mA	126 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	105 lm/W	White
Cree LED MX6SWT-A1-R250-000FF4	2-SMD Gull Wing	SMD	60 mA	126 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	105 lm/W	Neutral White		4750 K
Cree LED MX6SWT-A1-R250-000AZ8	2-SMD Gull Wing	SMD	60 mA	91 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	76 lm/W	Warm White	80	2700 K	87 lm	94 lm
Cree LED MX6SWT-A1-0000-000AA9	2-SMD Gull Wing	SMD	60 mA	91 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	76 lm/W	Warm White	80	2850 K	87 lm	94 lm
Cree LED MX6SWT-A1-R250-000CE6	2-SMD Gull Wing	SMD	60 mA	104 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	87 lm/W	Warm White	80	3500 K
Cree LED MX6SWT-A1-0000-000EF4	2-SMD Gull Wing	SMD	60 mA	118 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	98 lm/W	Neutral White		4750 K
Cree LED MX6SWT-H1-R250-000BB6	2-SMD Gull Wing	SMD	60 mA	97 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	81 lm/W	White	80		94 lm	100 lm
Cree LED MX6SWT-H1-0000-000EZ5	2-SMD Gull Wing	SMD	60 mA	118 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	98 lm/W	Neutral White	80	4000 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MX6SWT Series

LED Lighting XLamp® MX-6S White, Neutral 4750K 20V 60mA 120° 2-SMD, Gull Wing
