A221T10V22

Active

Nicomatic

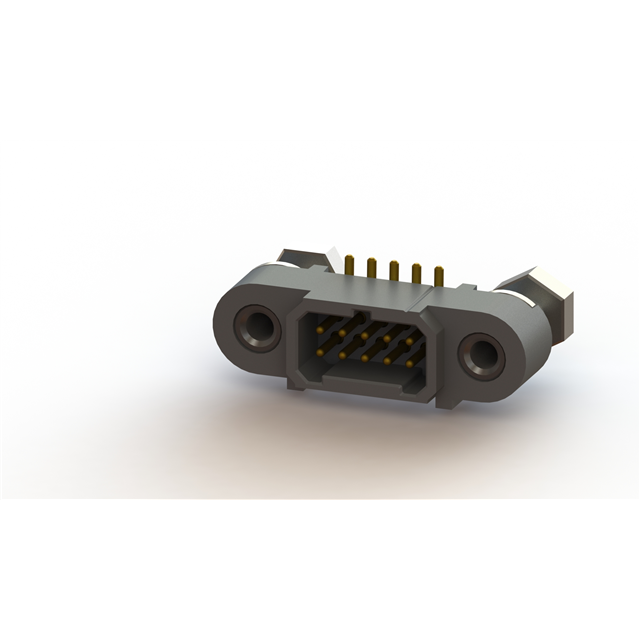

MALE 10POS STRAIGHT SMT 1.27MM

Search across all available documentation for this part.

Active

Nicomatic

MALE 10POS STRAIGHT SMT 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	A221T10V22

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	0.15 µm
Contact Finish Thickness - Post	5.9 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Features	Mounting Flange, Mating Flange, Mounting Hardware
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 VAC

MALE 10POS STRAIGHT SMT 1.27MM

Part	Insulation Height [custom]	Insulation Height [custom]	Number of Positions	Voltage Rating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Current Rating (Amps)	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Style	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish - Mating	Contact Type	Material Flammability Rating	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish - Post	Contact Shape	Features
Nicomatic A221T10V22	0.157 in	4 mm	10	600 VAC	Solder	0.15 µm	5.9 µin	Copper Alloy	Surface Mount	0.15 µm	5.9 µin	Shrouded - 4 Wall	2.5 A	All	0.039 "	1 mm	Board to Board, Cable	Black	-65 ░C	200 °C	2	Gold	Male Pin	UL94 V-0	Header	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Gold	Circular	Mating Flange, Mounting Flange, Mounting Hardware

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 10 position 0.039" (1.00mm)
