0294-0-15-15-06-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .022-.032 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
0294-0-15-15-06-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .022-.032 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0294-0-15-15-06-27-10-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 2.29 mm |
| Flange Diameter [diameter] | 0.09 in |
| Length - Overall [x] | 0.206 " |
| Length - Overall [x] | 5.23 mm |
| Mounting Hole Diameter [diameter] | 1.93 mm |
| Mounting Hole Diameter [diameter] | 0.076 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.051 in |
| Pin Hole Diameter [diameter] | 1.3 mm |
| Socket Depth | 0.185 in |
| Socket Depth | 4.7 mm |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.52 | |
| 10 | $ 0.45 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.39 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.34 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.27 | |||
| 2500 | $ 0.24 | |||
Description
General part information
0294-0 Series

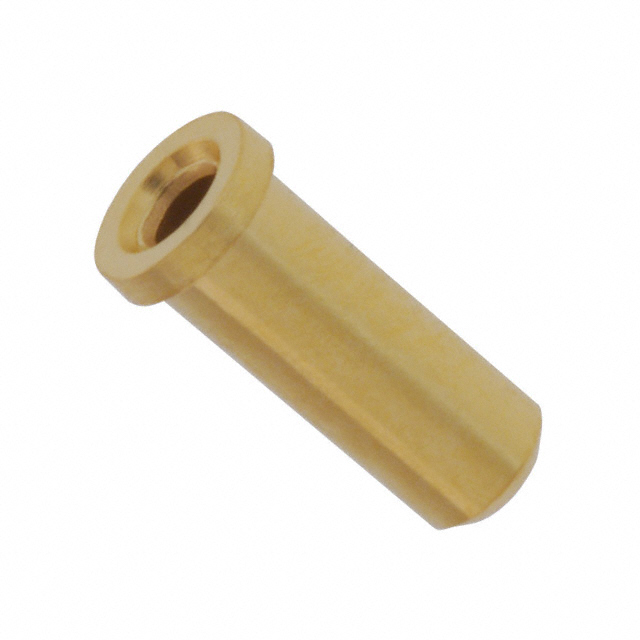

Pin Receptacle Connector 0.022" ~ 0.032" (0.56mm ~ 0.81mm) No Tail Solder
