S822/U

Active

NKK Switches

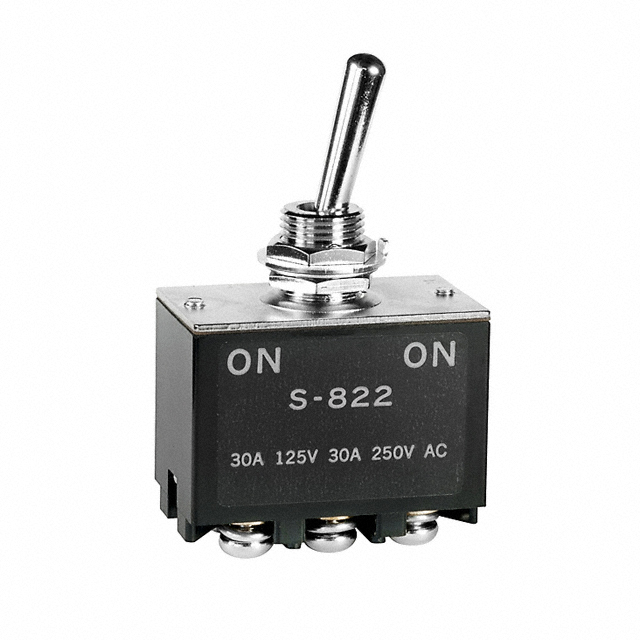

SWITCH TOGGLE DPDT 30A 125V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE DPDT 30A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	S822/U

Actuator Length [x]	22 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	30 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Current Rating (Amps)	Switch Function	Electrical Life	Actuator Length [x]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage Rating - AC	Actuator Material	Voltage Rating - DC	Circuit	Illumination	Termination Style	Actuator Type	Panel Cutout Dimensions [diameter]	Bushing Thread	Bushing Thread
NKK Switches S822/U	30 A	On-On	25000 Steps	22 mm	-10 °C	158 °F	125 V	Brass Chrome Plated	30 V	DPDT	Non-Illuminated	Screw Terminal	Standard Round	12.5 mm	M12	1 x 1
NKK Switches S822-AT401S	30 A	On-On	25000 Steps	22 mm	-10 °C	158 °F	125 V	Brass Chrome Plated	30 V	DPDT	Non-Illuminated	Screw Terminal	Standard Round	12.5 mm	M12	1 x 1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
