C0603C105K4PAL7867

Active

KEMET

CAP CER 1UF 16V X5R 0603

C0603C105K4PAL7867

Active

KEMET

CAP CER 1UF 16V X5R 0603

Description Specifications Series Pricing CAD Documents

Description

General part information

C0603C Series

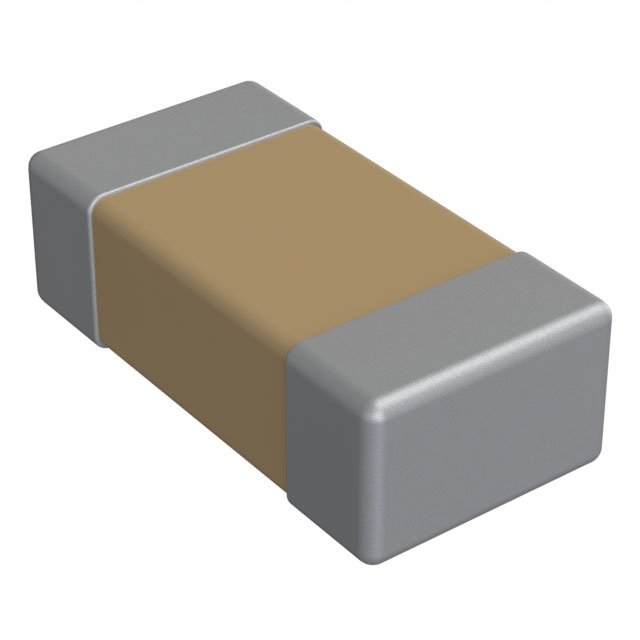

1 µF ±10% 16V Ceramic Capacitor X5R 0603 (1608 Metric)

Technical Specifications

Parameters and characteristics for this part

Specification	C0603C105K4PAL7867

Applications	Bypass, Decoupling
Capacitance	1 µF
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Package / Case	0603 (1608 Metric)
Size / Dimension Length	0.063 in
Size / Dimension Width	0.031 in
Temperature Coefficient	X5R
Thickness (Max)	0.035 in
Tolerance	10 %
Voltage - Rated	16 V

C0603C Series

...

Part	Size / Dimension Width	Size / Dimension Length	Temperature Coefficient	Thickness (Max)	Tolerance	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Capacitance	Applications	Voltage - Rated	Features	Ratings
KEMET C0603C105K4PAL7867	0.031 in	0.063 in	X5R	0.035 in	10 %	0603 (1608 Metric)	-55 °C	85 °C	MLCC Surface Mount	1 µF	Bypass Decoupling	16 V
KEMET C0603C271K1GAC7867	0.031 in	0.063 in	C0G NP0	0.034 in	10 %	0603 (1608 Metric)	-55 °C	125 °C	MLCC Surface Mount	270 pF	General Purpose	100 VAC/DC	Low ESL
KEMET C0603C332K1RAC7867	0.031 in	0.063 in	X7R	0.034 in	10 %	0603 (1608 Metric)	-55 °C	125 °C	MLCC Surface Mount	3300 pF	Bypass Decoupling	100 VAC/DC
KEMET C0603C391G4HACTU	0.031 in	0.063 in	X8R	0.034 in	2 %	0603 (1608 Metric)	-55 °C	150 °C	MLCC Surface Mount	390 pF	General Purpose	16 V	High Temperature Low ESL
KEMET C0603C750K8HAC7867	0.031 in	0.063 in	X8R	0.034 in	10 %	0603 (1608 Metric)	-55 °C	150 °C	MLCC Surface Mount	75 pF	General Purpose	10 V	High Temperature Low ESL
KEMET C0603C121G3HAC7867	0.031 in	0.063 in	X8R	0.034 in	2 %	0603 (1608 Metric)	-55 °C	150 °C	MLCC Surface Mount	120 pF	General Purpose	25 VAC	High Temperature Low ESL
KEMET C0603C222F5JACAUTO	0.031 in	0.063 in	U2J	0.034 in	1 %	0603 (1608 Metric)	-55 °C	125 °C	MLCC Surface Mount	2200 pF	Automotive	50 V	Low Dissipation Factor Low ESL	AEC-Q200
KEMET C0603C120M4HAC7867	0.031 in	0.063 in	X8R	0.034 in	20 %	0603 (1608 Metric)	-55 °C	150 °C	MLCC Surface Mount	12 pF	General Purpose	16 V	High Temperature Low ESL
KEMET C0603C272G3JACAUTO	0.031 in	0.063 in	U2J	0.034 in	2 %	0603 (1608 Metric)	-55 °C	125 °C	MLCC Surface Mount	2700 pF	Automotive	25 VAC	Low Dissipation Factor Low ESL	AEC-Q200
KEMET C0603C123K8JAC7867	0.031 in	0.063 in	U2J	0.034 in	10 %	0603 (1608 Metric)	-55 °C	125 °C	MLCC Surface Mount	0.012 µF	General Purpose	10 V	Low Dissipation Factor Low ESL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

KEM_C1079_X5R_SnPb_SMD.pdf

Datasheet
