DG-ANT-50DP-AG

Active

Digi

RF ANT 2.4GHZ/5GHZ WHIP TILT

Search across all available documentation for this part.

Active

Digi

RF ANT 2.4GHZ/5GHZ WHIP TILT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.61

General part information

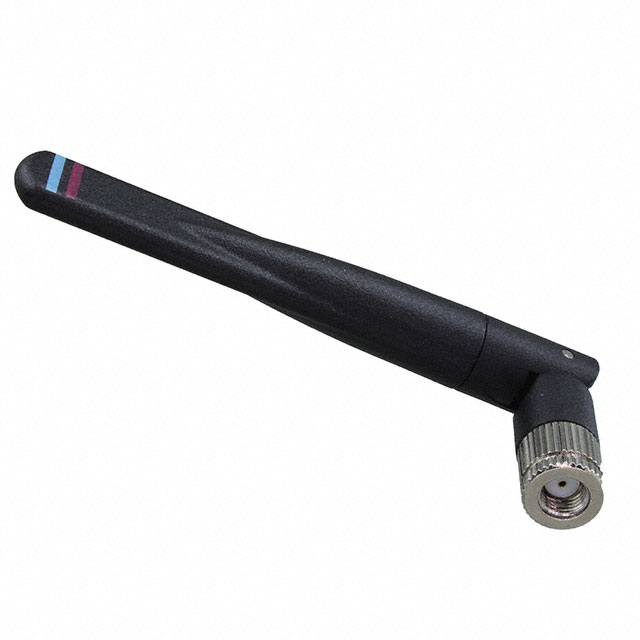

RF ANTENNA Wi-Fi Whip, Tilt RP-SMA Male Connector Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	DG-ANT-50DP-AG	DG-ANT Series

Antenna Type	Tilt, Whip	Tilt, Whip, Flat Patch, Whip, Straight
Applications	Wi-Fi	Wi-Fi
Frequency (Center/Band)	2.4 GHz, 5 GHz	2.4 - 535 GHz
Frequency Group	4 GHz	4 GHz
Frequency Group	-	UHF, VHF
Frequency Group [Max]	3 GHz	3 GHz
Frequency Group [Min]	2 GHz	2 GHz
Frequency Range	-	2.4 - 70 GHz
Frequency Range	-	1 - 5.9 GHz
Gain	5 dBi	2 - 5 dBi
Height (Max)	133.5 mm	24.13 - 133.5 mm
Height (Max) [Max]	5.256 in	0.95 - 5.256 in
Mounting Type	Connector Mount	Connector Mount, Surface Mount
Number of Bands	2	1 - 2
Power - Max [Max]	1 W	1 - 10 W
Return Loss	-10 dB	-10 dB
RF Family/Standard	WiFi	WiFi
Termination	RP-SMA Male	RP-SMA Male, IPEX MHF1, U.FL (UMCC), BNC
VSWR	2	2 - 2.5

RF ANT 2.4GHZ/5GHZ WHIP TILT

Part	VSWR	Applications	Termination	Height (Max)	Height (Max) [Max]	Gain	Power - Max [Max]	Mounting Type	Antenna Type	RF Family/Standard	Number of Bands	Frequency (Center/Band)	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Return Loss	Frequency Range [Min]	Frequency Range [Max]	Frequency Group
Digi DG-ANT-50DP-AG	2	Wi-Fi	RP-SMA Male	133.5 mm	5.256 in	5 dBi	1 W	Connector Mount	Tilt, Whip	WiFi	2	2.4 GHz, 5 GHz	4 GHz	2 GHz	3 GHz	-10 dB
Digi DG-ANT-20CB-AG	2.5		IPEX MHF1, U.FL (UMCC)	24.13 mm	0.95 in	2 dBic	10 W	Surface Mount	Flat Patch		2		4 GHz	2 GHz	3 GHz		2.4 GHz, 4.9 GHz	2.5 GHz, 5.9 GHz
Digi DG-ANT-RH799-B			BNC					Connector Mount	Whip, Straight		1	535 MHz					70 MHz	1 GHz	UHF, VHF
