104338-8

Active

TE Connectivity AMP Connectors

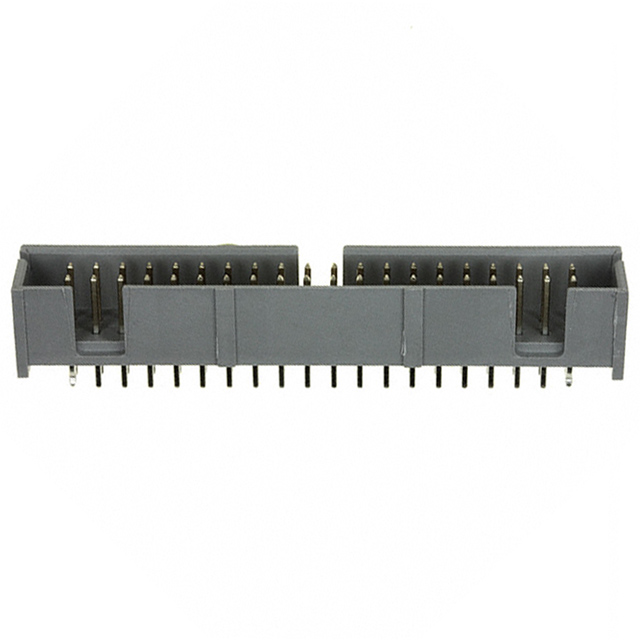

CONN HEADER VERT 40POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 40POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	104338-8

Connector Type	Header
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Gray
Insulation Height	0.385 in
Insulation Height	9.78 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN HEADER VERT 40POS 2.54MM

Part	Material Flammability Rating	Style	Contact Type	Connector Type	Contact Finish - Mating	Fastening Type	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Shrouding	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions	Current Rating (Amps)	Features	Termination	Contact Finish - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating [x]
TE Connectivity AMP Connectors 104338-8	UL94 V-0	Board to Cable/Wire	Male Pin	Header	Gold or Gold-Palladium	Push-Pull	Through Hole	2.54 mm	0.1 in	All	2	15 µin	0.38 µm	Square	Shrouded - 4 Wall	Gray	-65 ░C	105 ░C	0.1 in	2.54 mm	Phosphor Bronze	40	1 A	Keying Slot	Kinked Pin, Solder	Tin-Lead	0.385 in	9.78 mm	2.54 µm	100 µin	0.12 in	3.05 mm	6.1 mm	0.24 in

General part information

Connector Header Through Hole 40 position 0.100" (2.54mm)
