Q-2F0490008012i
ActiveAmphenol Custom Cable

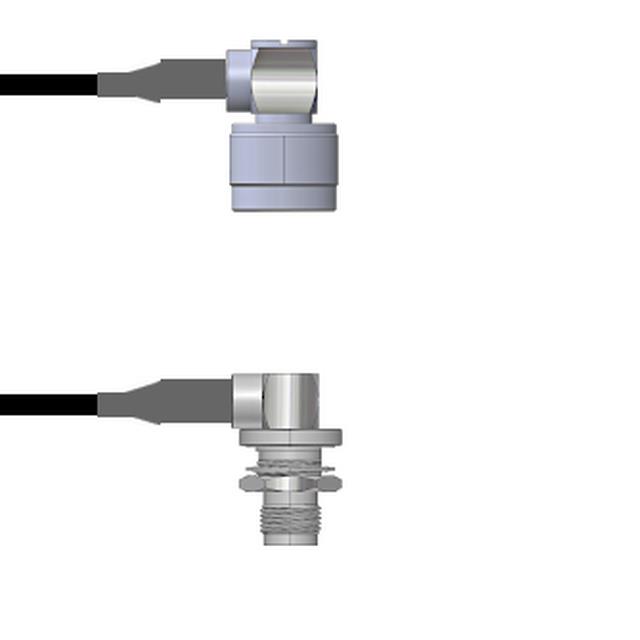

CBL ASSY NTYPE-TNC PLUG-JACK 12"
Deep-Dive with AI
Search across all available documentation for this part.
Q-2F0490008012i
ActiveAmphenol Custom Cable
CBL ASSY NTYPE-TNC PLUG-JACK 12"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2F0490008012i |
|---|---|
| 1st Connector | N-Type Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Jack, Right Angle |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-58 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 12 " |
| Length | 304.8 mm |
| Overall Impedance | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 112.11 | |
| 25 | $ 109.98 | |||
| 50 | $ 107.85 | |||
| 100 | $ 105.72 | |||
| 250 | $ 103.59 | |||
Description
General part information
Q-2F0490 Series
Cable Assembly Coaxial N-Type to TNC RG-58 12.00" (304.80mm)
Documents
Technical documentation and resources
No documents available
