TFM-150-01-L-D-WT - TFM-150-01-L-D-WT

TFM-150-01-L-D-WT

Active
Samtec Inc.

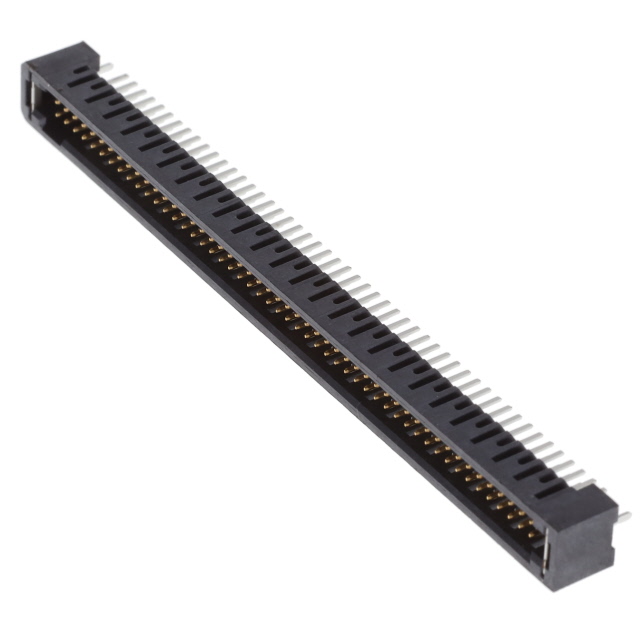

CONN HEADER VERT 100POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTFM DatasheetTiger Eye™ Cost-Effective Terminal Strip, .050" Pitch+2
TFM-150-01-L-D-WT - TFM-150-01-L-D-WT

TFM-150-01-L-D-WT

Active
Samtec Inc.

CONN HEADER VERT 100POS 1.27MM

Deep-Dive with AI

DocumentsTFM DatasheetTiger Eye™ Cost-Effective Terminal Strip, .050" Pitch+2

Technical Specifications

Parameters and characteristics for this part

SpecificationTFM-150-01-L-D-WT
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating15 µin
Contact Finish Thickness - Mating0.38 µm
Contact Length - Mating3.33 mm
Contact Length - Mating0.131 in
Contact Length - Post [x]0.078 in
Contact Length - Post [x]1.98 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)2.9 A
Fastening TypePush-Pull
FeaturesSolder Retention
Insulation ColorBlack
Insulation Height5.6 mm
Insulation Height0.22 in
Insulation MaterialLiquid Crystal Polymer (LCP)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions100
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.05 in
Pitch - Mating1.27 mm
Row Spacing - Mating0.05 in
Row Spacing - Mating1.27 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder
Voltage Rating275 VAC

TFM-150 Series

...
