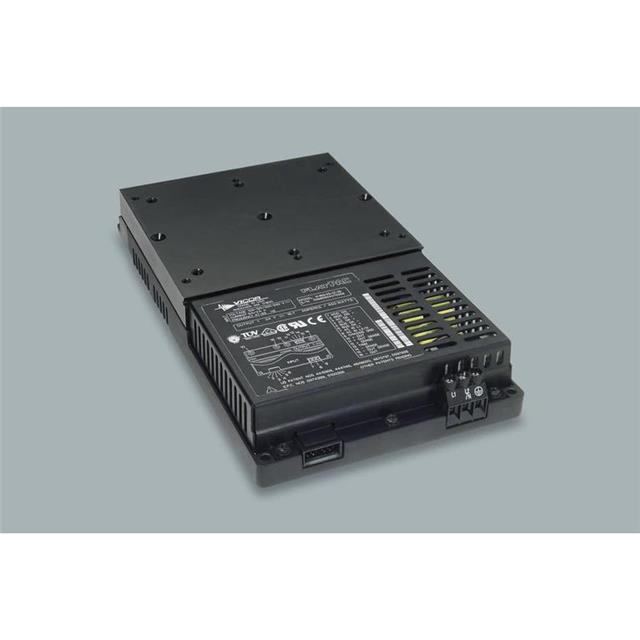

Specification	VI-RU123-EUWX

Applications	ITE (Commercial)
Approval Agency	cTUVus, CE, UL, TUV, cURus
Current - Output 1	16.667 A
Current - Output 2	6.667 A
Current - Output 3	3.125 A
Efficiency	88 %
Features	Universal Input, Adjustable Output, Remote Sense
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	0 °C
Power (Watts)	375 W
Size / Dimension Height	1.37 in
Size / Dimension Length	9.25 in
Size / Dimension Width	7.3 in
Standard Number	60950-1
Type	Enclosed
Voltage - Input (Range 1) Maximum	132 V
Voltage - Input (Range 1) Minimum	90 VAC
Voltage - Input (Range 2) Maximum	264 VAC
Voltage - Input (Range 2) Minimum	180 VAC
Voltage - Isolation	4242 V
Voltage - Output 1	12 V
Voltage - Output 2	15 V
Voltage - Output 3	24 V

VI-RU123 Series

Part	Mounting Type	Current - Output 2	Voltage - Output 2	Type	Voltage - Output 3	Standard Number	Efficiency	Current - Output 1	Number of Outputs	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Current - Output 3	Voltage - Input (Range 2) Minimum	Voltage - Input (Range 1) Maximum	Voltage - Input (Range 2) Maximum	Voltage - Input (Range 1) Minimum	Approval Agency	Voltage - Output 1	Applications	Features	Power (Watts)	Voltage - Isolation	Operating Temperature (Max)	Operating Temperature (Min)
Vicor Corporation VI-RU123-EUWX	Chassis Mount	6.667 A	15 V	Enclosed	24 V	60950-1	88 %	16.667 A	3	9.25 in	7.3 in	1.37 in	3.125 A	180 VAC	132 V	264 VAC	90 VAC	CE cTUVus cURus TUV UL	12 V	ITE (Commercial)	Adjustable Output Remote Sense Universal Input	375 W	4242 V	85 °C	0 °C
