0348944006

Active

Molex

MINI50 SLD RCPT ASMLY 2X4 CPA LT

0348944006

Active

Molex

MINI50 SLD RCPT ASMLY 2X4 CPA LT

Description Specifications Series Pricing CAD Documents

Description

General part information

034894 Series

8 Rectangular Connectors - Housings Receptacle Gray 0.071" (1.80mm)

Technical Specifications

Parameters and characteristics for this part

Specification	0348944006

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Connector Position Assurance (CPA), Sealed
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.071 in
Row Spacing	0.081 in

034894 Series

Part	Note	Contact Type	Pitch	Color	Fastening Type	Mounting Type	Contact Termination	Number of Positions	Features	Connector Type	Insulation Material	Number of Rows	Row Spacing	Operating Temperature (Max)	Operating Temperature (Min)
Molex 0348948003	Contacts Not Included	Female Socket	0.071 in	Gray	Latch Lock	Free Hanging (In-Line)	Crimp	16	Connector Position Assurance (CPA) Sealed	Receptacle	Glass Filled Nylon Polyamide (PA)	2
Molex 0348944012	Contacts Not Included	Female Socket	0.071 in	Gray	Latch Lock	Free Hanging (In-Line)	Crimp	8	Sealed	Receptacle	Glass Filled Nylon Polyamide (PA)	2
Molex 0348944006		Female Socket	0.071 in	Gray	Latch Lock	Free Hanging (In-Line)	Crimp	8	Connector Position Assurance (CPA) Sealed	Receptacle	Glass Filled Nylon Polyamide (PA)	2	0.081 in	125 °C	-40 °C
Molex 0348944005		Female Socket	0.071 in	Black	Latch Lock	Free Hanging (In-Line)	Crimp	8	Connector Position Assurance (CPA) Sealed	Receptacle	Glass Filled Nylon Polyamide (PA)	2	0.081 in	125 °C	-40 °C
Molex 0348944002	Contacts Not Included	Female Socket	0.071 in	Gray	Latch Lock	Free Hanging (In-Line)	Crimp	8	Connector Position Assurance (CPA) Sealed	Receptacle	Glass Filled Nylon Polyamide (PA)	2
Molex 0348944008		Female Socket	0.071 in	Gray	Latch Lock	Free Hanging (In-Line)	Crimp	8	Connector Position Assurance (CPA) Sealed	Receptacle	Glass Filled Nylon Polyamide (PA)	2	0.081 in	125 °C	-40 °C
Molex 0348944001	Contacts Not Included	Female Socket	0.071 in	Black	Latch Lock	Free Hanging (In-Line)	Crimp	8	Connector Position Assurance (CPA) Sealed	Receptacle	Glass Filled Nylon Polyamide (PA)	2
Molex 0348948002	Contacts Not Included	Female Socket	0.071 in	Gray	Latch Lock	Free Hanging (In-Line)	Crimp	16	Connector Position Assurance (CPA) Sealed	Receptacle	Glass Filled Nylon Polyamide (PA)	2

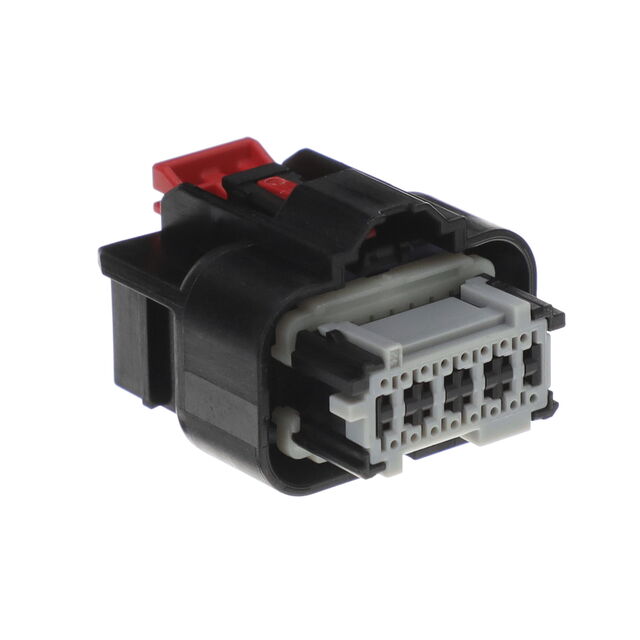

Molex 0348948008		Female Socket	0.071 in	Gray	Latch Lock	Free Hanging (In-Line)	Crimp	16	Connector Position Assurance (CPA) Sealed	Receptacle	Glass Filled Nylon Polyamide (PA)	2	0.081 in	125 °C	-40 °C
Molex 0348944009	Contacts Not Included	Female Socket	0.071 in	Black	Latch Lock	Free Hanging (In-Line)	Crimp	8	Sealed	Receptacle	Glass Filled Nylon Polyamide (PA)	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

0348944006 | Datasheet
