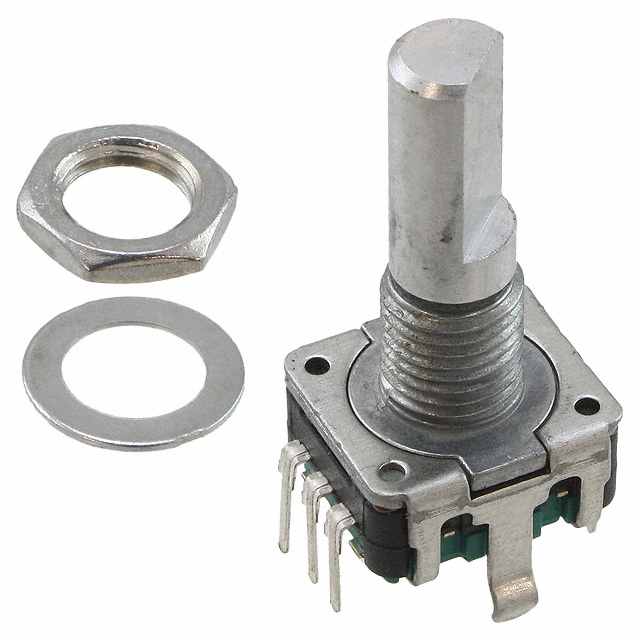

PEC11-4220F-S0024

Obsolete

Bourns Inc.

ROTARY ENCODER MECHANICAL 24PPR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PEC11-4220F-S0024

Obsolete

Bourns Inc.

ROTARY ENCODER MECHANICAL 24PPR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC11-4220F-S0024

Actuator Type	Flatted End
Actuator Type [diameter]	6 mm
Built in Switch	True
Detent	True
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	24 per Revolution
Rotational Life (Cycles Min) [Min]	30K
Termination Style	PC Pin

PEC11 Series

Part	Rotational Life (Cycles Min) [Min]	Actuator Type [diameter]	Actuator Type	Encoder Type	Pulses per Revolution	Mounting Type	Output Type	Orientation	Termination Style
Bourns Inc. PEC11-4220K-N0024	30K	6 mm	Knurled End	Mechanical	24 per Revolution	Panel PCB Through Hole	Quadrature (Incremental)	Vertical	PC Pin
Bourns Inc. PEC11-4220F-S0024	30K	6 mm	Flatted End	Mechanical	24 per Revolution	Panel PCB Through Hole	Quadrature (Incremental)	Vertical	PC Pin
Bourns Inc. PEC11-4030F-N0012	30K	6 mm	Flatted End	Mechanical	12 pulses per revolution	Panel PCB Through Hole	Quadrature (Incremental)	Vertical	PC Pin
Bourns Inc. PEC11-4025F-S0018	30K	6 mm	Flatted End	Mechanical	18	Panel PCB Through Hole	Quadrature (Incremental)	Vertical	PC Pin
Bourns Inc. PEC11-4225F-S0012	30K	6 mm	Flatted End	Mechanical	12 pulses per revolution	Panel PCB Through Hole	Quadrature (Incremental)	Vertical	PC Pin
Bourns Inc. PEC11-4120K-S0012	30K	6 mm	Knurled End	Mechanical	12 pulses per revolution	Panel PCB Through Hole	Quadrature (Incremental)	Vertical	PC Pin
Bourns Inc. PEC11-4230F-S0012	30K	6 mm	Flatted End	Mechanical	12 pulses per revolution	Panel PCB Through Hole	Quadrature (Incremental)	Vertical	PC Pin
Bourns Inc. PEC11-4020F-S0018	30K	6 mm	Flatted End	Mechanical	18	Panel PCB Through Hole	Quadrature (Incremental)	Vertical	PC Pin
Bourns Inc. PEC11-4030F-S0024	30K	6 mm	Flatted End	Mechanical	24 per Revolution	Panel PCB Through Hole	Quadrature (Incremental)	Vertical	PC Pin
Bourns Inc. PEC11-4015F-S0024	30K	6 mm	Flatted End	Mechanical	24 per Revolution	Panel PCB Through Hole	Quadrature (Incremental)	Vertical	PC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PEC11 Series

Rotary Encoder Mechanical 24 Quadrature (Incremental) Vertical
