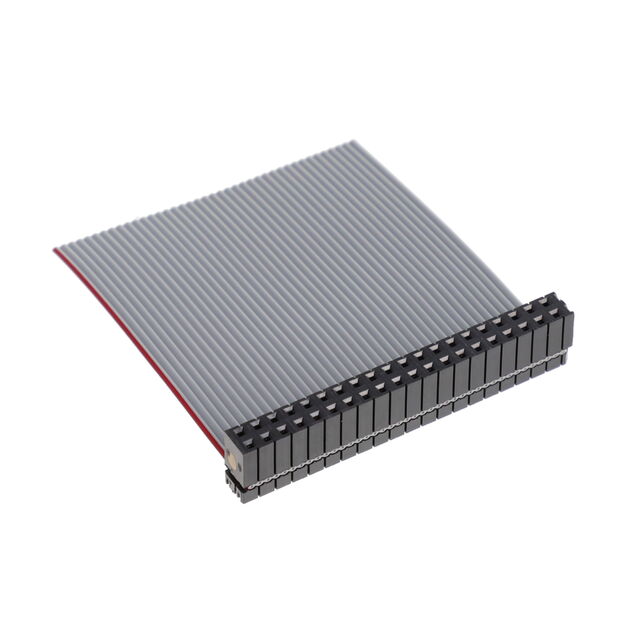

IDSD-20-S-02.20-G

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Search across all available documentation for this part.

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Technical Specifications

Parameters and characteristics for this part

...

Part	Color	Shielding	Number of Positions	Cable Termination	Pitch - Cable	Pitch - Cable	Contact Finish	Length	Length	Length	Connector Type	Number of Rows	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length [x]
Samtec Inc. IDSD-20-D-07.00	Multiple Ribbon	Unshielded	40	IDC	0.05 "	1.27 mm	Gold	0.583 ft	7 in	177.8 mm	Socket to Socket	2	0.1 in	2.54 mm
Samtec Inc. IDSD-20-D-44.00-R	Multiple Ribbon	Unshielded	40	IDC	0.05 "	1.27 mm	Gold	3.67 ft		1.12 m	Socket to Socket Reversed	2	0.1 in	2.54 mm
Samtec Inc. IDSD-20-S-14.00	Multiple Ribbon	Unshielded	40	IDC	0.05 "	1.27 mm	Gold	1.17 ft		355.6 mm	Socket to Cable	2	0.1 in	2.54 mm
Samtec Inc. IDSD-20-S-02.20-G		Unshielded	40	IDC	0.05 "	1.27 mm	Gold	0.183 ft	2.2 "	55.88 mm	Socket to Cable	2	0.1 in	2.54 mm
Samtec Inc. IDSD-20-D-17.00-G		Unshielded	40	IDC	0.05 "	1.27 mm	Gold				Socket to Socket	2	0.1 in	2.54 mm	431.8 mm	1.42 ft
Samtec Inc. IDSD-20-D-04.40	Multiple Ribbon	Unshielded	40	IDC	0.05 "	1.27 mm	Gold				Socket to Socket	2	0.1 in	2.54 mm	111.76 mm	0.367 '	4.4 "
Samtec Inc. IDSD-20-D-18.00-P02	Multiple Ribbon	Unshielded	40	IDC	0.05 "	1.27 mm	Gold				Socket to Socket	2	0.1 in	2.54 mm	457.2 mm	1.5 ft
Samtec Inc. IDSD-20-S-18.00-ST2	Multiple Ribbon	Unshielded	40	IDC	0.05 "	1.27 mm	Gold				Socket to Cable	2	0.1 in	2.54 mm	457.2 mm	1.5 ft
Samtec Inc. IDSD-20-D-56.00-G		Unshielded	40	IDC	0.05 "	1.27 mm	Gold	4.67 ft		1.42 m	Socket to Socket	2	0.1 in	2.54 mm
Samtec Inc. IDSD-20-S-05.00	Multiple Ribbon	Unshielded	40	IDC	0.05 "	1.27 mm	Gold				Socket to Cable	2	0.1 in	2.54 mm	127 mm	0.417 '	5 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.20

General part information

40 Position Cable Assembly Rectangular Socket to Cable 0.183' (55.88mm, 2.20")
