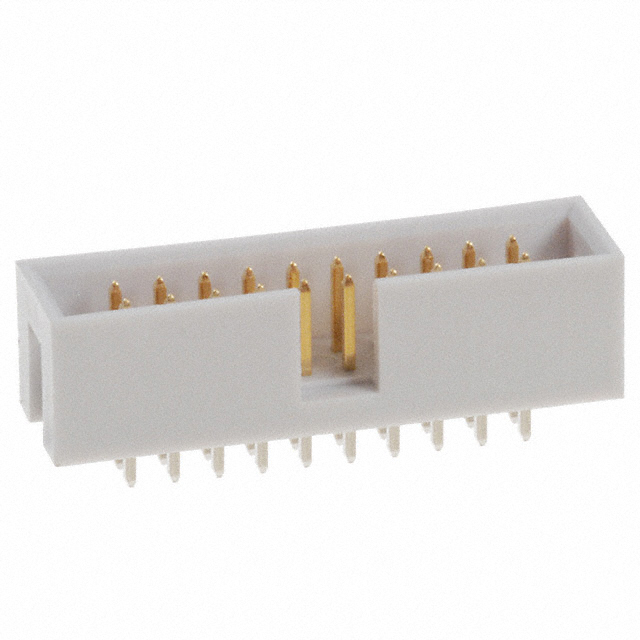

AWHW20G-0102-T-R

Obsolete

CONN HEADER VERT 20POS 2.54MM

Obsolete

CONN HEADER VERT 20POS 2.54MM

Description

General part information

Connector Header Through Hole 20 position 0.100" (2.54mm)

Parameters and characteristics for this part

Specification	AWHW20G-0102-T-R

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.224 in
Contact Length - Post	0.13 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Gray
Insulation Height	0.354 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

Part	Contact Length - Mating	Insulation Color	Contact Material	Features	Style	Shrouding	Row Spacing - Mating	Termination	Contact Length - Post	Contact Type	Number of Rows	Pitch - Mating	Number of Positions	Material Flammability Rating	Contact Finish - Post	Insulation Material	Number of Positions Loaded	Connector Type	Contact Shape	Contact Finish Thickness - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Contact Finish - Mating	Mounting Type	Insulation Height	Current Rating	Contact Finish Thickness - Mating
Assmann WSW Components AWHW20A-0202-T-R	0.224 in	Gray	Brass	Keying Slot	Board Cable/Wire	Shrouded - 4 Wall	0.1 in	Solder	0.124 in	Male Pin	2	0.1 in	20	UL94 V-0	Tin	Glass Filled Polybutylene Terephthalate (PBT)	All	Header	Square	Flash	-40 °C	105 °C	Push-Pull	Gold	Right Angle Through Hole	0.352 in	3 A
Assmann WSW Components AWHW20G-0102-T-R	0.224 in	Gray	Brass	Keying Slot	Board Cable/Wire	Shrouded - 4 Wall	0.1 in	Solder	0.13 in	Male Pin	2	0.1 in	20	UL94 V-0	Tin	Glass Filled Polybutylene Terephthalate (PBT)	All	Header	Square		-40 °C	105 °C	Push-Pull	Gold	Through Hole	0.354 in	3 A	30 µin
Assmann WSW Components AWHW20A-0102-T-R	0.224 in	Gray	Brass	Keying Slot	Board Cable/Wire	Shrouded - 4 Wall	0.1 in	Solder	0.124 in	Male Pin	2	0.1 in	20	UL94 V-0	Tin	Glass Filled Polybutylene Terephthalate (PBT)	All	Header	Square		-40 °C	105 °C	Push-Pull	Gold	Right Angle Through Hole	0.352 in	3 A	30 µin
