SN74LVC1G04DBVR

Active

UMW

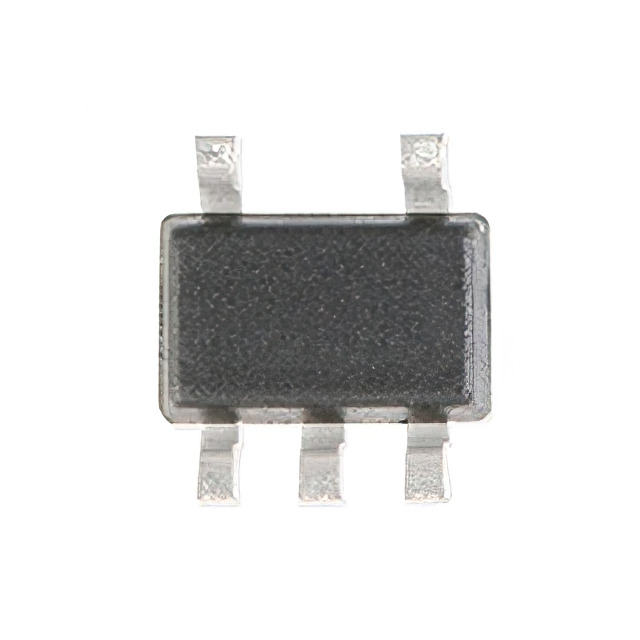

IC INVERTER 1CH 1-INP SOT23-5

Search across all available documentation for this part.

Active

UMW

IC INVERTER 1CH 1-INP SOT23-5

Technical Specifications

Parameters and characteristics for this part

Specification	SN74LVC1G04DBVR

Current - Output High, Low [x]	32 mA
Current - Output High, Low [y]	32 mA
Current - Quiescent (Max) [Max]	10 µA
Input Logic Level - High [Max]	3.85 V
Input Logic Level - High [Min]	1.07 V
Input Logic Level - Low [Max]	1.65 V
Input Logic Level - Low [Min]	0.58 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	10 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	1
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	1.65 V

IC INVERTER 1CH 1-INP SOT23-5

Part	Supplier Device Package	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Package / Case	Number of Circuits	Max Propagation Delay @ V, Max CL	Operating Temperature [Max]	Operating Temperature [Min]	Logic Type	Number of Inputs	Mounting Type	Current - Output High, Low [y]	Current - Output High, Low [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Current - Quiescent (Max) [Max]
UMW SN74LVC1G04DBVR	SOT-23-5	0.58 V	1.65 V	SC-74A, SOT-753	1	10 ns	105 °C	-40 °C	Inverter	1	Surface Mount	32 mA	32 mA	5.5 V	1.65 V	3.85 V	1.07 V	10 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Inverter IC 1 Channel SOT-23-5
