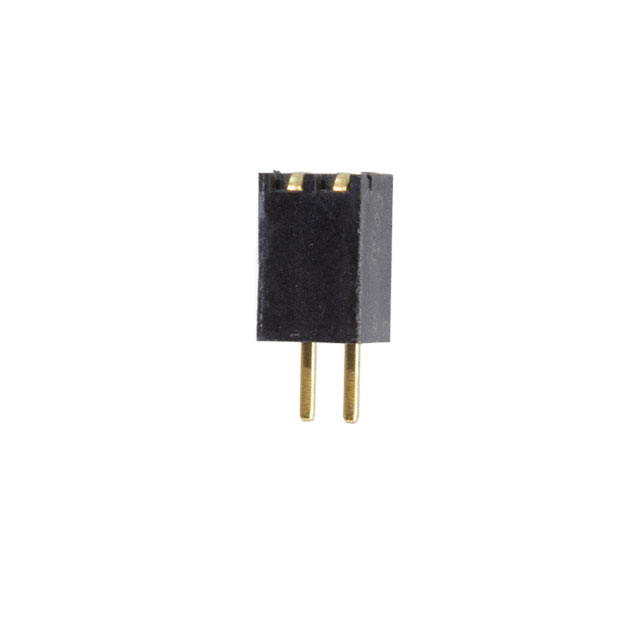

BSW-102-04-G-S

Active

Samtec Inc.

CONN RCPT 2POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

Documents.100" Bottom Entry Socket Strip Datasheet +1

BSW-102-04-G-S

Active

Samtec Inc.

CONN RCPT 2POS 0.1 GOLD PCB

Deep-Dive with AI

Documents.100" Bottom Entry Socket Strip Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSW-102-04-G-S

Connector Type	Breakaway, Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Bottom Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

BSW-125 Series

Board to Board & Mezzanine Connectors .100" Bottom Entry Socket Strip

Part	Connector Type	Contact Material	Material Flammability Rating	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Termination	Insulation Color	Contact Finish - Mating	Number of Positions Loaded	Number of Rows	Number of Positions	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post	Contact Length - Post
Samtec Inc. BSW-125-04-L-D	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin	0.165 in	4.19 mm	Push-Pull	-55 °C	125 °C	Square	10 çin	0.25 çm	Bottom Mount Through Hole	Solder	Black	Gold	All	2	50	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	0.35 in	8.89 mm
Samtec Inc. BSW-119-24-L-D	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin	0.165 in	4.19 mm	Push-Pull	-55 °C	125 °C	Square	10 çin	0.25 çm	Bottom Mount Through Hole	Solder	Black	Gold	All	2	38	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	0.35 in	8.89 mm
Samtec Inc. BSW-102-04-G-S	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin			Push-Pull	-55 °C	125 °C	Square	20 µin	0.51 µm	Bottom Mount Through Hole	Solder	Black	Gold	All	1	2	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket			0.35 in	8.89 mm	4.32 mm	0.17 in
Samtec Inc. BSW-126-24-L-D	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin	0.165 in	4.19 mm	Push-Pull	-55 °C	125 °C	Square	10 çin	0.25 çm	Bottom Mount Through Hole	Solder	Black	Gold	All	2	52	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	0.35 in	8.89 mm
Samtec Inc. BSW-102-04-T-D	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin	0.165 in	4.19 mm	Push-Pull	-55 °C	105 ░C	Square			Bottom Mount Through Hole	Solder	Black		All	2	4	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	0.35 in	8.89 mm
Samtec Inc. BSW-133-04-G-S	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin			Push-Pull	-55 °C	125 °C	Square	20 µin	0.51 µm	Bottom Mount Through Hole	Solder	Black	Gold	All	1	33	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket			0.35 in	8.89 mm	4.32 mm	0.17 in
Samtec Inc. BSW-133-24-S-S	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin			Push-Pull	-55 °C	125 °C	Square	30 Áin	0.76 Ám	Bottom Mount Through Hole	Solder	Black	Gold	All	1	33	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket			0.35 in	8.89 mm	4.32 mm	0.17 in
Samtec Inc. BSW-125-24-S-S	Receptacle	Phosphor Bronze	UL94 V-0	Tin			Push-Pull	-55 °C	125 °C	Square	30 Áin	0.76 Ám	Bottom Mount Through Hole	Solder	Black	Gold	All	1		Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket			0.35 in	8.89 mm	4.32 mm	0.17 in
Samtec Inc. BSW-119-24-S-D	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin	0.165 in	4.19 mm	Push-Pull	-55 °C	125 °C	Square	30 Áin	0.76 Ám	Bottom Mount Through Hole	Solder	Black	Gold	All	2	38	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	0.35 in	8.89 mm
Samtec Inc. BSW-133-04-L-S	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin			Push-Pull	-55 °C	125 °C	Square	10 çin	0.25 çm	Bottom Mount Through Hole	Solder	Black	Gold	All	1	33	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket			0.35 in	8.89 mm	4.32 mm	0.17 in
