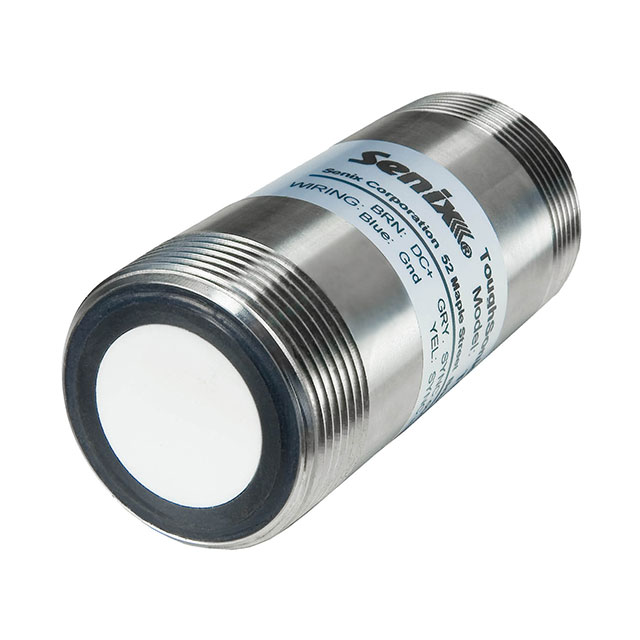

TSPC-15S-485

Active

Senix Corporation

TOUGHSONIC 30 1.5" NPT RS-485

Search across all available documentation for this part.

Active

Senix Corporation

TOUGHSONIC 30 1.5" NPT RS-485

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TSPC-15S-485	TSPC-15 Series

Indicator [custom]	No Indicator	No Indicator
Ingress Protection	IP68	IP68
Material - Body	Stainless Steel	Stainless Steel
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	NPN/PNP, Analog Current and Voltage	NPN/PNP, Analog Current and Voltage
Package / Case	Cylinder, Threaded	Cylinder, Threaded
Sensing Distance	9.1 m	9.1 m
Sensing Distance	30 ft	30 ft
Sensor Type	Ultrasonic	Ultrasonic
Shielding	Unshielded	Unshielded
Termination Style	Cable Leads	Cable Leads
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	10 VDC	10 VDC

TOUGHSONIC 30 1.5" NPT RS-232

Part	Output Type	Termination Style	Shielding	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance	Sensing Distance	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Ingress Protection	Material - Body	Indicator [custom]
Senix Corporation TSPC-15S-232	Analog Current and Voltage, NPN/PNP	Cable Leads	Unshielded	Cylinder, Threaded	-40 °C	70 °C	9.1 m	30 ft	30 VDC	10 VDC	Ultrasonic	IP68	Stainless Steel	No Indicator
Senix Corporation TSPC-15S-485	Analog Current and Voltage, NPN/PNP	Cable Leads	Unshielded	Cylinder, Threaded	-40 °C	70 °C	9.1 m	30 ft	30 VDC	10 VDC	Ultrasonic	IP68	Stainless Steel	No Indicator

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TOUGHSONIC 30 1.5" NPT RS-485
