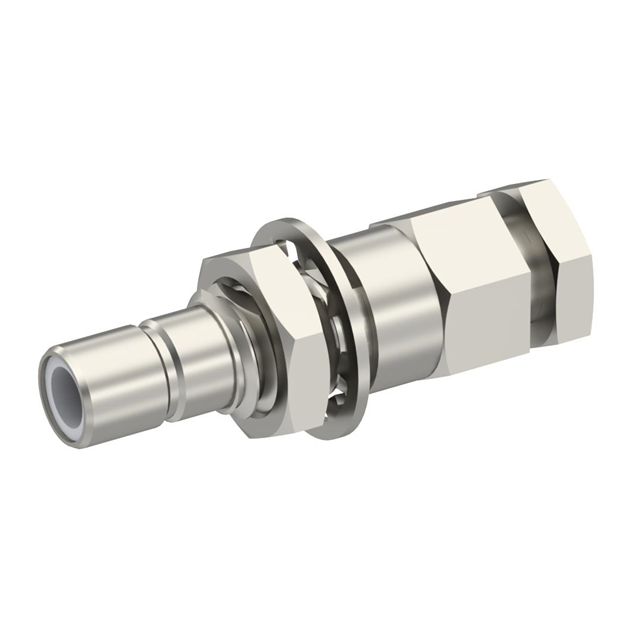

Specification	2003-7551-003

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 316, 188
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Jack, Male Pin
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	4 GHz
Housing Color	Silver
Impedance	50 Ohm
Insertion Loss	0.3 dB
Mating Cycles	500 cycles
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Clamp
Voltage Rating	335 V

2003-7551 Series

Part	Connector Style	Fastening Type	Frequency - Max	Cable Group	Shield Termination	Housing Color	Connector Type	Mounting Type	Number of Ports	Mounting Feature	Center Contact Material	Contact Termination	Impedance	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Body Material	Dielectric Material	Insertion Loss	Body Finish	Mating Cycles
Radiall USA, Inc. 2003-7551-003	SMB	Snap-On	4 GHz	188 316 RG-174	Clamp	Silver	Jack Male Pin	Panel Mount	1	Bulkhead Front Side Nut	Brass	Crimp	50 Ohm	335 V	-65 °C	165 °C	Gold	Brass	Polytetrafluoroethylene (PTFE)	0.3 dB	Nickel	500 cycles
