TD240N16SOFHPSA1

Active

Infineon Technologies

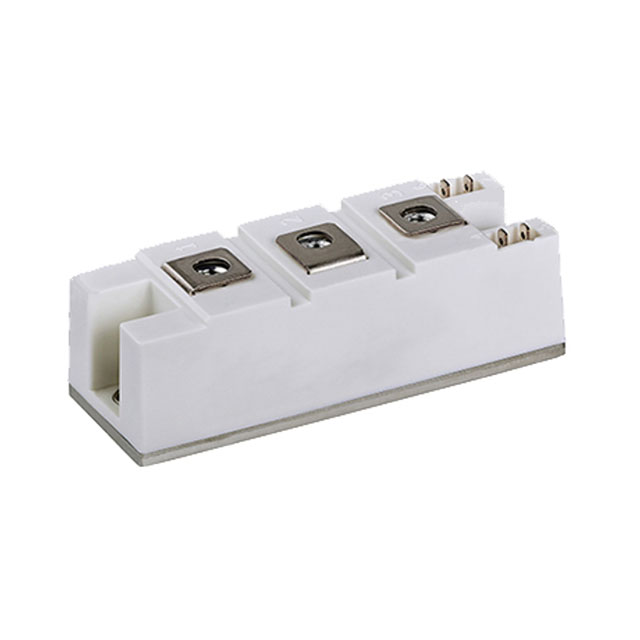

1600 V, 240 A ECO BLOCK 34 MM THYRISTOR / DIODE PHASE CONTROL MODULES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TD240N16SOFHPSA1

Active

Infineon Technologies

1600 V, 240 A ECO BLOCK 34 MM THYRISTOR / DIODE PHASE CONTROL MODULES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TD240N16SOFHPSA1

Current - Gate Trigger (Igt) (Max) [Max]	145 mA
Current - Hold (Ih) (Max) [Max]	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	5200 A
Current - On State (It (AV)) (Max) [Max]	240 A
Current - On State (It (RMS)) (Max)	275 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1
Package / Case	Module
Structure	Series Connection - SCR/Diode
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	1.6 kV

TD240N16 Series

Part	Current - On State (It (AV)) (Max) [Max]	Number of SCRs, Diodes	Structure	Current - Hold (Ih) (Max) [Max]	Package / Case	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max)	Mounting Type	Current - On State (It (RMS)) (Max)	Current - Gate Trigger (Igt) (Max) [Max]
Infineon Technologies TD240N16SOFHPSA1	240 A	1	Series Connection - SCR/Diode	200 mA	Module	1.6 kV	5200 A	2.5 V	Chassis Mount	275 A	145 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 52.89
		16	$ 48.09
		32	$ 46.48
		80	$ 43.28
		232	$ 41.67
Newark	Each	1	$ 55.78
		5	$ 48.52
		16	$ 41.26

Description

General part information

TD240N16 Series

Thyristor/Diode 34 mm Eco Block 1600 V, 240 A module for phase control insolder bond technology. This is the second generation with increase current rating. If you need higher blocking voltage go toTD240N18SOFand if you need additional features or higher performance go topressure contact technology.
