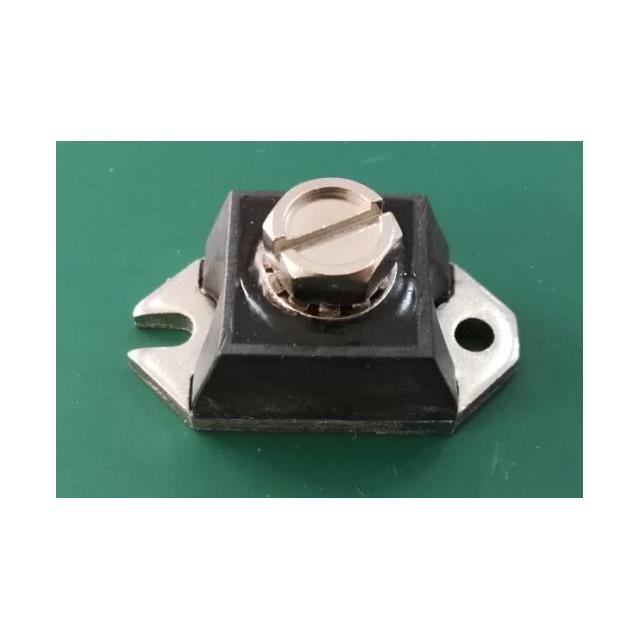

183NQ100R-1

Active

SMC Diode Solutions

DIODE SCHOTTKY 100V 180A PRM1-1

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE SCHOTTKY 100V 180A PRM1-1

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	183NQ100R-1	183NQ Series

Capacitance @ Vr, F	4150 pF	4150 pF
Current - Average Rectified (Io)	180 A	180 A
Current - Reverse Leakage @ Vr	4.5 mA	4.5 mA
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature - Junction [Max]	175 ░C	175 ░C
Operating Temperature - Junction [Min]	-55 C	-55 C
Package / Case	HALF-PAK	HALF-PAK
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	PRM1-1 (Half Pak Module)	PRM1-1 (Half Pak Module)
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V	80 - 100 V
Voltage - Forward (Vf) (Max) @ If	910 mV	910 - 950 mV

DIODE SCHOTTKY 100V 180A PRM1-1

Part	Supplier Device Package	Speed	Capacitance @ Vr, F	Package / Case	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Mounting Type
SMC Diode Solutions 183NQ100-1	PRM1-1 (Half Pak Module)	200 mA, 500 ns	4150 pF	HALF-PAK	180 A	950 mV	Schottky	100 V	175 ░C	-55 C	4.5 mA	Chassis Mount
SMC Diode Solutions 183NQ100R-1	PRM1-1 (Half Pak Module)	200 mA, 500 ns	4150 pF	HALF-PAK	180 A	910 mV	Schottky	100 V	175 ░C	-55 C	4.5 mA	Chassis Mount
SMC Diode Solutions 183NQ080-1	PRM1-1 (Half Pak Module)	200 mA, 500 ns	4150 pF	HALF-PAK	180 A	950 mV	Schottky	80 V	175 ░C	-55 C	4.5 mA	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	27	$ 24.31

General part information

Diode 100 V 180A Chassis Mount PRM1-1 (Half Pak Module)
