CG2185X2

Active

CEL

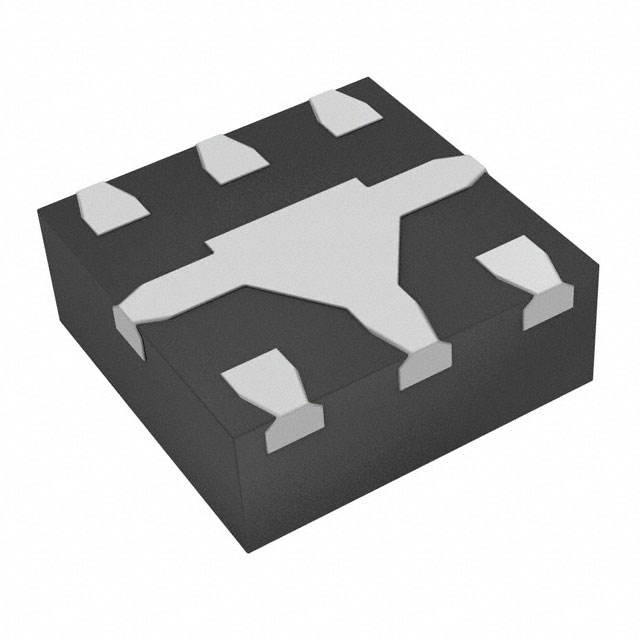

IC RF SWITCH SPDT 6GHZ 6TSSON

Search across all available documentation for this part.

Active

CEL

IC RF SWITCH SPDT 6GHZ 6TSSON

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CG2185X2	CG2185 Series

Circuit	SPDT	SPDT
For Use With/Related Products	-	CG2185X2
Frequency	-	2 GHz
Frequency	-	6 GHz
Frequency Range [Max]	6 GHz	6 GHz
Frequency Range [Min]	2 GHz	2 GHz
IIP3	-	55 dBm
Impedance	50 Ohms	50 Ohms
Insertion Loss	-	0.4 dB
Isolation	-	26 dB
P1dB	32 dBm	32 dBm
Package / Case	6-XFDFN Exposed Pad	6-XFDFN Exposed Pad
RF Type	802.11a/b/g/n/ac	802.11a/b/g/n/ac
Supplied Contents	-	Board(s)
Supplier Device Package	6-TSSON	6-TSSON
Test Frequency	-	6 GHz
Type	-	Switch, SPDT
Voltage - Supply [Max]	5 V	5 V
Voltage - Supply [Min]	1.8 V	1.8 V

IC RF SWITCH SPDT 6GHZ 6TSSON

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	RF Type	Supplier Device Package	Circuit	Impedance	Frequency Range [Max]	Frequency Range [Min]	P1dB	Insertion Loss	IIP3	Isolation	Test Frequency	For Use With/Related Products	Type	Supplied Contents	Frequency [Min]	Frequency [Max]
CEL CG2185X2	1.8 V	5 V	6-XFDFN Exposed Pad	802.11a/b/g/n/ac	6-TSSON	SPDT	50 Ohms	6 GHz	2 GHz	32 dBm
CEL CG2185X2-C2	1.8 V	5 V	6-XFDFN Exposed Pad	802.11a/b/g/n/ac	6-TSSON	SPDT	50 Ohms	6 GHz	2 GHz	32 dBm	0.4 dB	55 dBm	26 dB	6 GHz
CEL CG2185X2-EVAL															CG2185X2	Switch, SPDT	Board(s)	2 GHz	6 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	200	$ 0.79

General part information

RF Switch IC 802.11a/b/g/n/ac SPDT 6 GHz 50Ohm 6-TSSON
