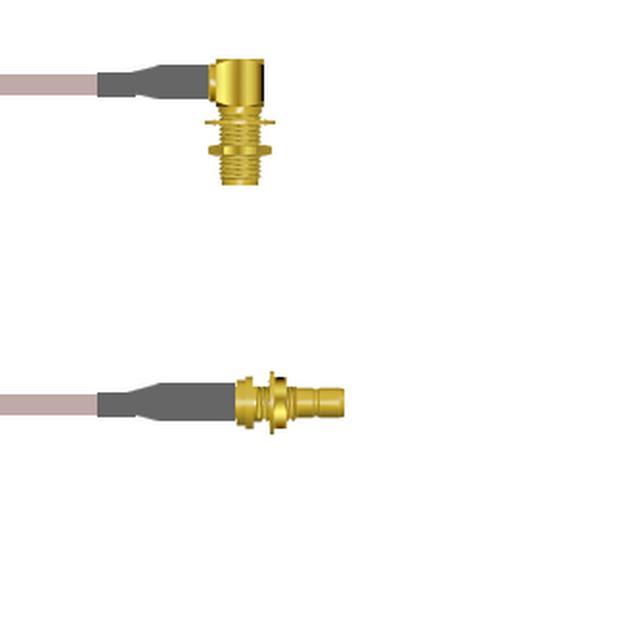

Q-2P03M0005.75M

Active

Amphenol Custom Cable

CBL ASSY SMA-SMB JCK-JCK 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2P03M0005.75M

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMB Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	SMA to SMB

Q-2P03M0 Series

Part	Frequency - Max [Max]	1st Connector Mounting Feature	1st Connector Mounting Type	Overall Impedance	Length	Length	Features	Cable Impedance	Cable Type	Style	2nd Connector Mounting Type	2nd Contact Gender	1st Contact Gender	Color	Connector Impedance	2nd Connector Mounting Feature	1st Connector	2nd Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2P03M0005.75M	3 GHz	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	29.53 "	750 mm	Shielded	50 Ohms	RG-316	SMA to SMB	Panel Mount	Male	Female	Copper	50 Ohms	Bulkhead - Front Side Nut	Right Angle SMA Jack	SMB Jack
Amphenol Custom Cable Q-2P03M0003048I	1 GHz	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	48 in	1200 mm	Shielded	50 Ohms	RG-174	SMA to SMB	Panel Mount	Male	Female	Black	50 Ohms	Bulkhead - Front Side Nut	Right Angle SMA Jack	SMB Jack	4 ft
Amphenol Custom Cable Q-2P03M00031.5M	1 GHz	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	59.1 in	1.5 m	Shielded	50 Ohms	RG-174	SMA to SMB	Panel Mount	Male	Female	Black	50 Ohms	Bulkhead - Front Side Nut	Right Angle SMA Jack	SMB Jack	4.9 ft
Amphenol Custom Cable Q-2P03M0003108I	1 GHz	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	108 in	2.7 m	Shielded	50 Ohms	RG-174	SMA to SMB	Panel Mount	Male	Female	Black	50 Ohms	Bulkhead - Front Side Nut	Right Angle SMA Jack	SMB Jack	9 ft
Amphenol Custom Cable Q-2P03M0003036I	1 GHz	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	36 in	91.44 cm	Shielded	50 Ohms	RG-174	SMA to SMB	Panel Mount	Male	Female	Black	50 Ohms	Bulkhead - Front Side Nut	Right Angle SMA Jack	SMB Jack
Amphenol Custom Cable Q-2P03M00030.5M	1 GHz	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	19.69 "	50 cm	Shielded	50 Ohms	RG-174	SMA to SMB	Panel Mount	Male	Female	Black	50 Ohms	Bulkhead - Front Side Nut	Right Angle SMA Jack	SMB Jack
Amphenol Custom Cable Q-2P03M0003024I	1 GHz	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	24 "	609.6 mm	Shielded	50 Ohms	RG-174	SMA to SMB	Panel Mount	Male	Female	Black	50 Ohms	Bulkhead - Front Side Nut	Right Angle SMA Jack	SMB Jack
Amphenol Custom Cable Q-2P03M0003018I	1 GHz	Bulkhead - Front Side Nut	Panel Mount	50 Ohms			Shielded	50 Ohms	RG-174	SMA to SMB	Panel Mount	Male	Female	Black	50 Ohms	Bulkhead - Front Side Nut	Right Angle SMA Jack	SMB Jack		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2P03M00032.5M	1 GHz	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	98.4 in	2.5 m	Shielded	50 Ohms	RG-174	SMA to SMB	Panel Mount	Male	Female	Black	50 Ohms	Bulkhead - Front Side Nut	Right Angle SMA Jack	SMB Jack	8.2 '
Amphenol Custom Cable Q-2P03M0003006I	1 GHz	Bulkhead - Front Side Nut	Panel Mount	50 Ohms	6 in	152.4 mm	Shielded	50 Ohms	RG-174	SMA to SMB	Panel Mount	Male	Female	Black	50 Ohms	Bulkhead - Front Side Nut	Right Angle SMA Jack	SMB Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 111.03
		25	$ 108.85
		50	$ 106.68
		100	$ 104.50
		250	$ 102.33

Description

General part information

Q-2P03M0 Series

Cable Assembly Coaxial SMA to SMB RG-316 29.53" (750.00mm)
